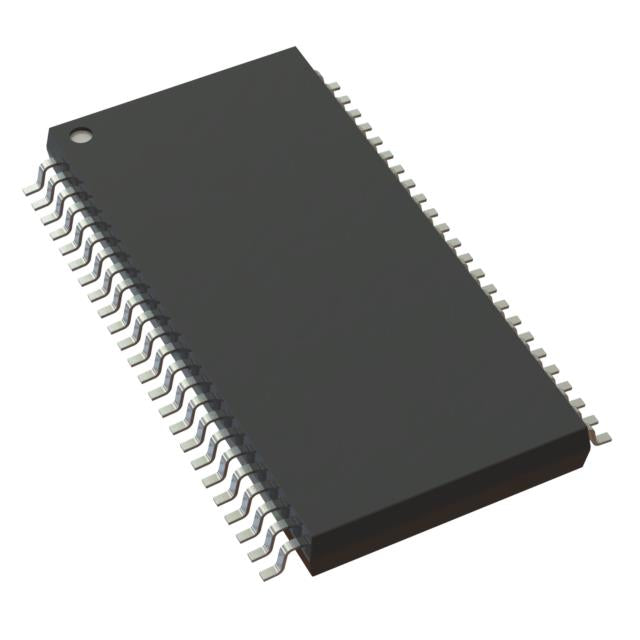

Analog Devices Inc. LTC1853CFW#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $17.63 | $17.63 |
| 15+ | $17.08 | $256.20 |
| 25+ | $16.70 | $417.50 |
| 50+ | $15.78 | $789.00 |
| 100+ | $13.92 | $1,392.00 |
| N+ | $2.78 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 400k |
| Number of Inputs | 8 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Features | PGA, Selectable Address |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 48-TFSOP (0.240", 6.10mm Width) |
| Supplier Device Package | 48-TSSOP |
| ROHS |  |
The LTC1853CFW#PBF is a 12-bit, 8-channel analog-to-digital converter from Analog Devices, featuring a sampling rate of 400 kSPS. Its multiplexed S/H architecture allows sequential sampling of up to 8 input channels, making it ideal for multi-sensor data acquisition systems. The device supports both external and internal references for design flexibility. Operating from 0°C to 70°C, it is housed in a 48-TFSOP package, suitable for industrial control, test equipment, and medical instrumentation.
- 8-Channel Multiplexing: Efficiently handles multiple analog inputs, reducing system cost and board space.
- Fast Throughput: 400 kSPS sampling rate enables rapid scanning of all channels.
- 12-Bit Resolution: Provides good accuracy for most industrial and instrumentation applications.
- Flexible Reference: Internal or external reference options accommodate different precision needs.
- Compact TFSOP Package: Saves PCB space while offering reliable performance.
Industrial Process Control
The 8-channel multiplexer allows monitoring of multiple process variables (temperature, pressure, flow) with 12-bit accuracy, ideal for PLCs and DCS systems.
Data Acquisition Systems
400 kSPS throughput with 8 channels enables efficient scanning of multiple sensors in high-speed data loggers.
Automated Test Equipment
Fast sampling and multiplexing make it suitable for testing multiple signals in ATE systems, reducing test time.
Power Monitoring
Measure voltage and current from multiple phases with 12-bit resolution for power quality analysis and energy metering.
Medical Instrumentation
Monitor multiple physiological signals (ECG, temperature, pressure) with a single ADC, simplifying patient monitoring systems.
Environmental Monitoring
Digitize outputs from multiple environmental sensors (humidity, gas, light) for weather stations and air quality monitors.
- Q: What type of ADC is the LTC1853CFW#PBF?
- A: It is a 12-bit, 8-channel multiplexed sample-and-hold analog-to-digital converter (MUX-S/H-ADC).
- Q: What is the sampling rate?
- A: The sampling rate is 400 kSPS (400k samples per second).
- Q: How many channels does it have?
- A: It has 8 input channels.
- Q: What is the resolution?
- A: The resolution is 12 bits.
- Q: What is the operating temperature range?
- A: It operates from 0°C to 70°C.
- Q: What package is available?
- A: It comes in a 48-TFSOP package (0.240", 6.10mm width).
