Analog Devices Inc. LTC2311HMSE-14#WPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $33.16 | $33.16 |
| 15+ | $32.11 | $481.65 |
| 25+ | $31.41 | $785.25 |
| 50+ | $29.67 | $1,483.50 |
| 100+ | $26.18 | $2,618.00 |
| N+ | $5.24 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 5M |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | LVDS - Serial, SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 3.13V ~ 3.47V, 4.75V ~ 5.25V |
| Voltage - Supply, Digital | 3.13V ~ 3.47V, 4.75V ~ 5.25V |
| Features | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Package / Case | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 16-MSOP-EP |
| ROHS |  |

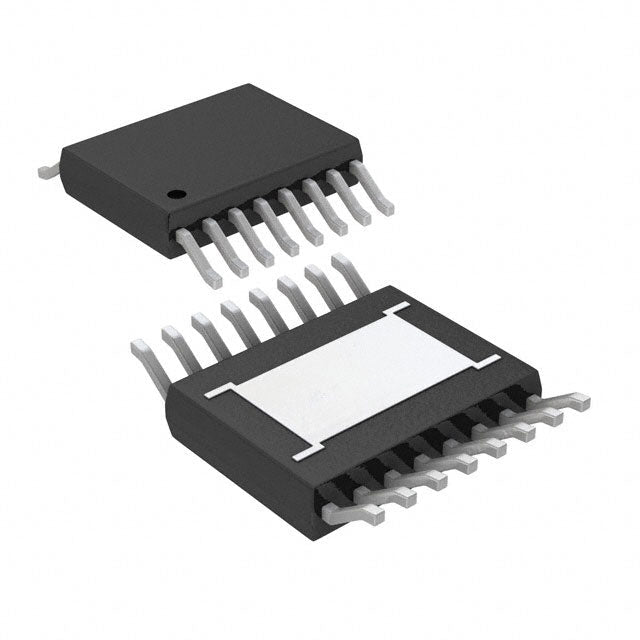

The LTC2311HMSE-14#WPBF is a 14-bit analog-to-digital converter from Analog Devices, offering a fast 5 MSPS sampling rate. It features both LVDS Serial and SPI interfaces for flexible system integration. Designed for harsh environments, it operates from -40°C to 125°C. This ADC is ideal for high-speed industrial control, automotive testing, and communications infrastructure where speed and reliability are critical.
- High-Speed Conversion: 5 MSPS sampling rate captures fast transient signals.
- Wide Temperature Range: -40°C to 125°C ensures operation in extreme conditions.
- Dual Interface Options: LVDS and SPI provide design flexibility.
- Compact Package: 16-TFSOP exposed pad saves board space.
High-Speed Industrial Control
The 5 MSPS sampling rate and 14-bit resolution enable fast, accurate control in industrial automation.
Automotive Test Systems
Wide temperature range (-40°C to 125°C) makes it suitable for engine and transmission test benches.
Communications Infrastructure
LVDS interface supports high-speed data transfer in base station and network equipment.
Portable High-Performance Instruments
Combines high speed with low power, ideal for battery-operated oscilloscopes and analyzers.
Aerospace Data Acquisition
Reliable operation over extreme temperatures suits aerospace telemetry and monitoring systems.
Energy Sector Monitoring
Precise and fast conversion for power grid monitoring and renewable energy systems.
- Q: What is the resolution of the LTC2311HMSE-14#WPBF?
- A: It is a 14-bit ADC.
- Q: What is the sampling rate?
- A: The sampling rate is 5 MSPS.
- Q: How many channels does it have?
- A: It has 1 input channel.
- Q: What interfaces are supported?
- A: It supports LVDS Serial and SPI interfaces.
- Q: What is the architecture?
- A: It uses a S/H-ADC architecture.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 125°C.
