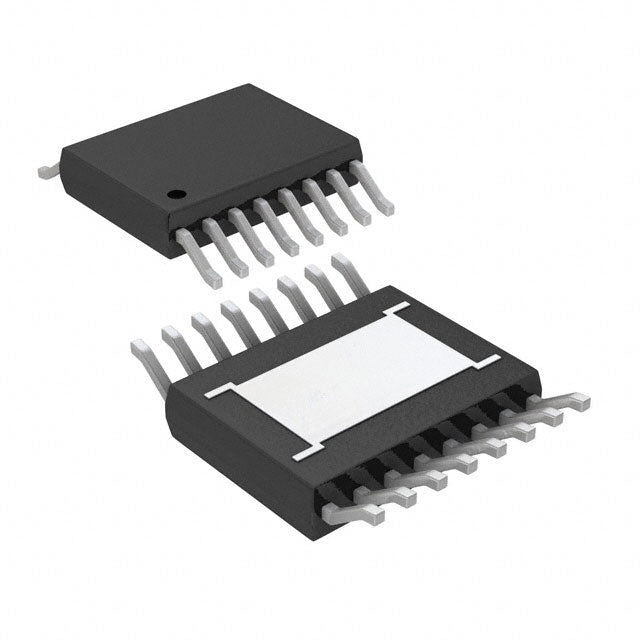

Analog Devices Inc. LTC2311IMSE-16#WPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $32.26 | $32.26 |
| 15+ | $31.24 | $468.60 |
| 25+ | $30.56 | $764.00 |
| 50+ | $28.87 | $1,443.50 |
| 100+ | $25.47 | $2,547.00 |
| N+ | $5.09 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 5M |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | LVDS - Serial, SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 3.13V ~ 3.47V, 4.75V ~ 5.25V |
| Voltage - Supply, Digital | 3.13V ~ 3.47V, 4.75V ~ 5.25V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Package / Case | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 16-MSOP-EP |
The LTC2311IMSE-16#WPBF is a high-performance 16-bit analog-to-digital converter from Analog Devices. It offers a fast 5 MSPS sampling rate with a single input channel, ensuring precise and rapid data conversion. Featuring both LVDS Serial and SPI interfaces, it provides flexible connectivity for various digital systems. Its S/H-ADC architecture and support for external or internal references make it a versatile choice for high-speed data acquisition, medical instrumentation, and industrial automation applications.
- High-Speed Precision: 16-bit resolution at 5 MSPS enables accurate capture of fast-changing signals.
- Flexible Interfacing: Supports both LVDS Serial and SPI, allowing easy integration with different microcontrollers and DSPs.
- Robust Temperature Range: Operates from -40°C to 85°C, suitable for demanding industrial environments.
- Versatile Reference Options: External or internal reference support provides design flexibility for various accuracy requirements.
High-Speed Data Acquisition Systems
The 5 MSPS sampling rate and 16-bit resolution make it ideal for high-speed data acquisition systems requiring precise waveform capture.
Medical Instrumentation
Its 16-bit resolution ensures high accuracy for medical imaging and diagnostic equipment, while the SPI interface simplifies integration.
Industrial Automation
The wide temperature range (-40°C to 85°C) and external/internal reference options support reliable operation in industrial control systems.
Communications Infrastructure
The LVDS serial interface enables high-speed data transfer in communication systems, maintaining signal integrity over longer distances.
Precision Sensor Digitization
With 16-bit resolution, it accurately digitizes sensor outputs in applications like pressure and temperature monitoring.
Portable Instrumentation
The compact 16-TFSOP package and low power consumption make it suitable for battery-powered portable test equipment.
- Q: What is the resolution of the LTC2311IMSE-16#WPBF?
- A: It is a 16-bit ADC.
- Q: What is the sampling rate?
- A: The sampling rate is 5 MSPS.
- Q: How many channels does it have?
- A: It has 1 input channel.
- Q: What interfaces are supported?
- A: It supports LVDS Serial and SPI interfaces.
- Q: What is the architecture?
- A: It uses a S/H-ADC (Sample and Hold) architecture.
- Q: What is the package type?
- A: It comes in a 16-TFSOP exposed pad package.
