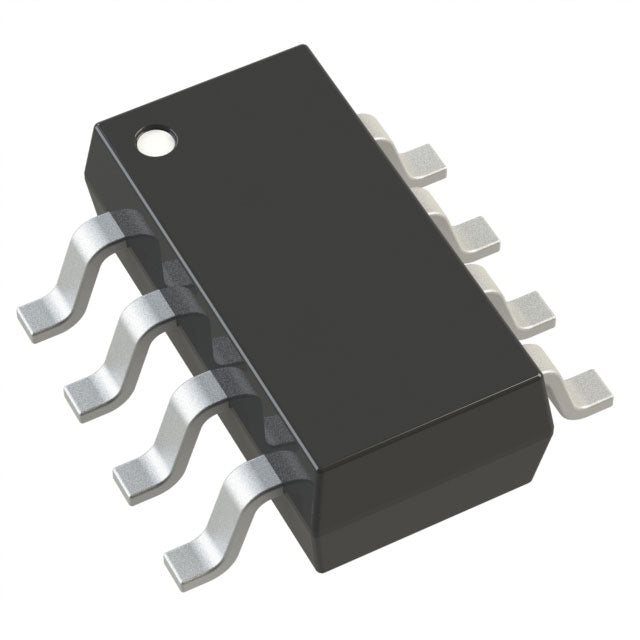

Analog Devices Inc. LTC2312CTS8-14#TRMPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $17.88 | $17.88 |
| 15+ | $17.31 | $259.65 |
| 25+ | $16.94 | $423.50 |
| 50+ | $16.00 | $800.00 |
| 100+ | $14.12 | $1,412.00 |
| N+ | $2.82 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 500k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | Internal |
| Voltage - Supply, Analog | 2.7V ~ 3.6V, 5V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V, 5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | SOT-23-8 Thin, TSOT-23-8 |
| Supplier Device Package | TSOT-23-8 |
| ROHS |  |
The LTC2312CTS8-14 from Analog Devices is a 14-bit, 500 kSPS analog-to-digital converter with a single input channel. It features a sample-and-hold architecture and an internal voltage reference, simplifying circuit design. The device communicates via an SPI interface and operates over a 0°C to 70°C temperature range. Housed in a compact SOT-23-8 package, this ADC is designed for space-limited applications requiring high-speed, accurate conversions, such as portable instrumentation and industrial control systems.
- Compact Size: The SOT-23-8 package is ideal for space-constrained designs.
- Integrated Reference: Internal reference reduces external component count and simplifies layout.
- High Speed: 500 kSPS sampling rate supports fast signal acquisition.
- Simple Interface: SPI communication is easy to implement with most microcontrollers.
- Low Power: Suitable for battery-powered applications due to efficient operation.
Space-Constrained Portable Devices
The compact TSOT-23-8 package and single-channel design make the LTC2312CTS8-14 ideal for portable instruments and battery-powered devices where PCB area is at a premium.
High-Speed Control Loops
With a 500 kSPS sampling rate and 14-bit resolution, this ADC is suitable for digital control loops in power supplies and motor control applications, providing fast and accurate feedback.
Communication Systems
The internal reference simplifies design in communication equipment where a stable voltage reference is needed without external components, reducing system complexity.
Industrial Sensor Interfaces
This ADC can digitize signals from industrial sensors like temperature probes and pressure transducers, with the SPI interface ensuring easy data transfer to a central controller.
Test and Measurement Equipment
The combination of speed and resolution makes it useful in benchtop multimeters and data loggers for capturing transient signals with good accuracy.
- Q: What is the resolution of the LTC2312CTS8-14?
- A: This ADC has a 14-bit resolution.
- Q: What is the maximum sampling rate?
- A: It supports a sampling rate of 500k samples per second (500 kSPS).
- Q: How many channels does this device have?
- A: It has a single input channel.
- Q: What interface does it use?
- A: It uses a serial peripheral interface (SPI).
- Q: What is the architecture of this ADC?
- A: It uses a sample-and-hold (S/H) architecture, typically based on a successive approximation register (SAR) design.
- Q: What is the package type?
- A: It is available in a thin SOT-23-8 (TSOT-23-8) package.
