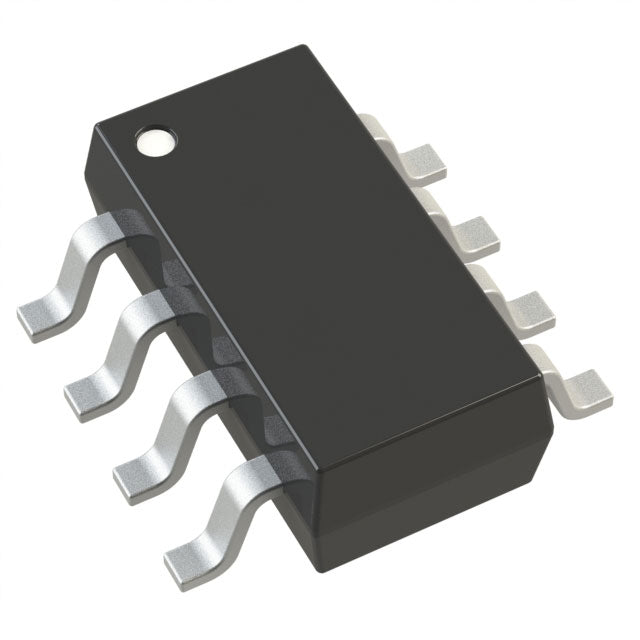

Analog Devices Inc. LTC2312HTS8-14#TRMPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $22.14 | $22.14 |
| 15+ | $21.45 | $321.75 |
| 25+ | $20.98 | $524.50 |
| 50+ | $19.81 | $990.50 |
| 100+ | $17.48 | $1,748.00 |
| N+ | $3.50 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 500k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | Internal |
| Voltage - Supply, Analog | 2.7V ~ 3.6V, 5V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V, 5V |
| Features | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | SOT-23-8 Thin, TSOT-23-8 |
| Supplier Device Package | TSOT-23-8 |
| ROHS |  |
The LTC2312HTS8-14#TRMPBF is a high-speed, 14-bit analog-to-digital converter (ADC) from Analog Devices. It features a sampling rate of 500k SPS and a single input channel. This ADC includes an internal reference and communicates via a simple SPI interface. Its standout feature is its extended temperature range of -40°C to 125°C, making it exceptionally robust for automotive and industrial environments. The tiny SOT-23-8 package makes it an excellent choice for space-limited and high-temperature applications.
- Extended Temperature Range: Operates from -40°C to 125°C, suitable for the most demanding automotive and industrial environments.
- Integrated Reference: The internal reference simplifies design and reduces external component count.
- Compact Size: The SOT-23-8 package is one of the smallest available, ideal for miniaturized designs.
- High-Speed Sampling: 500k SPS ensures accurate capture of fast-changing signals.
Automotive Sensor Interfaces
The wide -40°C to 125°C temperature range and 14-bit resolution make the LTC2312HTS8-14#TRMPBF ideal for automotive applications like battery management systems and motor control, where extreme temperatures are common.
Industrial Control Loops
With a 500k SPS sampling rate, this ADC can be used in high-speed industrial control loops for precise, real-time monitoring of current and voltage in servo drives and power supplies.
Portable Instrumentation
The small SOT-23 package and internal reference make it perfect for space-constrained, battery-powered instruments like handheld multimeters and environmental sensors.
High-Temperature Data Logging
Its ability to operate at 125°C allows for reliable data logging in harsh environments such as engine compartments, down-hole drilling, and industrial ovens.
Optical Networking
The high-speed SPI interface and small footprint are suitable for monitoring and control in optical transceivers, where space is at a premium and fast response is required.
Precision Power Management
In server and telecom power supplies, the LTC2312HTS8-14#TRMPBF can accurately digitize current and voltage for digital power control and monitoring, improving efficiency.
- Q: What is the resolution of the LTC2312HTS8-14#TRMPBF?
- A: This device is a 14-bit analog-to-digital converter (ADC).
- Q: What is the sampling rate?
- A: It supports a sampling rate of 500k SPS.
- Q: How many input channels does it have?
- A: It has a single (1) input channel.
- Q: What interface does it use?
- A: It uses a Serial Peripheral Interface (SPI).
- Q: What is the operating temperature range?
- A: It operates over a wide temperature range of -40°C to 125°C.
- Q: What is the package type?
- A: It comes in a compact SOT-23-8 Thin / TSOT-23-8 package.
