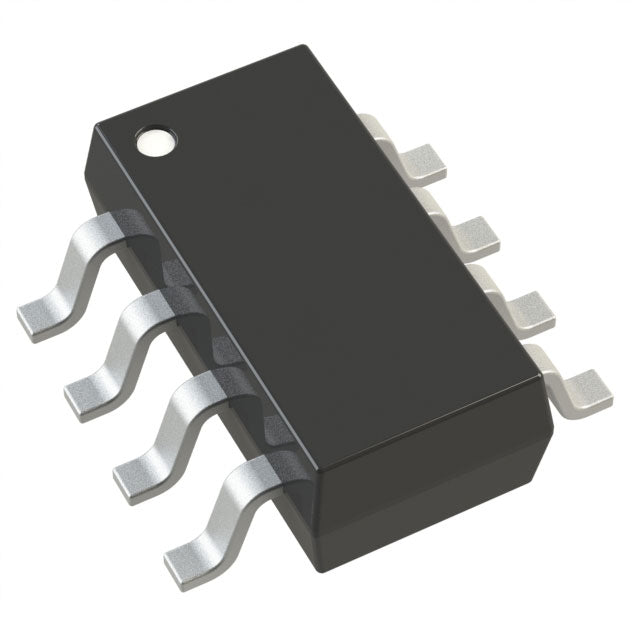

Analog Devices Inc. LTC2313HTS8-14#TRMPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $24.47 | $24.47 |
| 15+ | $23.70 | $355.50 |
| 25+ | $23.18 | $579.50 |
| 50+ | $21.90 | $1,095.00 |
| 100+ | $19.32 | $1,932.00 |
| N+ | $3.86 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 2.5M |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | Internal |
| Voltage - Supply, Analog | 2.7V ~ 3.6V, 5V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V, 5V |
| Features | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | SOT-23-8 Thin, TSOT-23-8 |
| Supplier Device Package | TSOT-23-8 |
| ROHS |  |
The LTC2313HTS8-14#TRMPBF is a 14-bit, single-channel analog-to-digital converter from Analog Devices. It offers a maximum sampling rate of 2.5 MSPS and uses a sample-and-hold architecture. The device features an internal voltage reference and communicates via an SPI interface. It is housed in a compact SOT-23-8 Thin package and operates over a wide temperature range of -40°C to +125°C. This ADC is well-suited for high-speed, space-constrained applications including portable instrumentation, industrial control, and automotive sensor interfaces.
