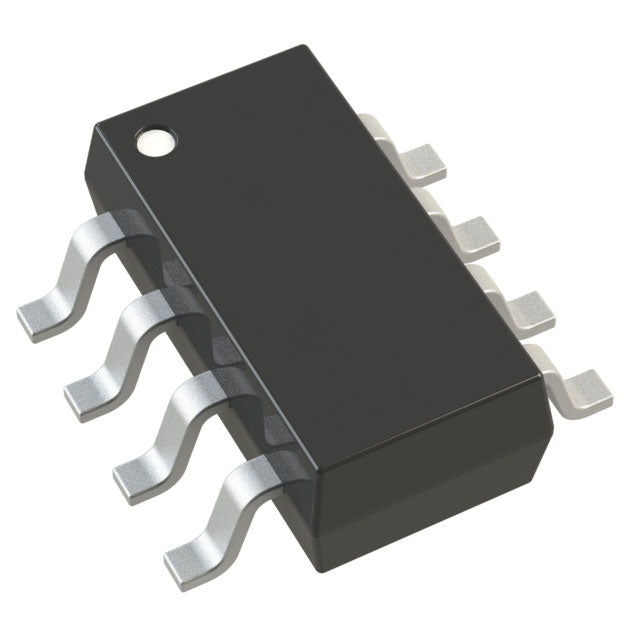

Analog Devices Inc. LTC2313ITS8-14#TRMPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $21.97 | $21.97 |
| 15+ | $21.28 | $319.20 |
| 25+ | $20.82 | $520.50 |
| 50+ | $19.66 | $983.00 |
| 100+ | $17.35 | $1,735.00 |
| N+ | $3.47 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 2.5M |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | Internal |
| Voltage - Supply, Analog | 2.7V ~ 3.6V, 5V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V, 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | SOT-23-8 Thin, TSOT-23-8 |
| Supplier Device Package | TSOT-23-8 |
| ROHS |  |
The LTC2313ITS8-14 is a high-speed 14-bit analog-to-digital converter (ADC) from Analog Devices, capable of sampling at 2.5M SPS. It features a single input channel and a simple SPI interface, making it easy to integrate into high-performance digital systems. Packaged in a compact SOT-23-8 Thin package, this ADC is perfect for space-constrained applications requiring fast and accurate signal conversion, such as communications and portable instrumentation.
- Ultra-Fast Sampling (2.5M SPS): Enables digitization of high-frequency signals for demanding applications like radar and communications.
- Compact Package: The small TSOT-23-8 footprint saves valuable board space in portable devices.
- Simple SPI Interface: Easy to connect to microcontrollers and FPGAs, reducing design complexity.
- Low Power Consumption: Ideal for battery-powered and portable applications.
High-Speed Data Acquisition
The 2.5M SPS sampling rate of the LTC2313ITS8-14 makes it ideal for high-speed data acquisition in applications like radar and lidar systems.
Communications Systems
Its fast sampling and SPI interface enable digitization of IF signals in software-defined radios and base stations.
Portable Medical Devices
The small TSOT-23 package and low power consumption make it suitable for portable ultrasound and vital sign monitors.
Industrial Imaging
With 14-bit resolution and high speed, it can be used in machine vision cameras for precise image capture.
Automotive ADAS
Its high speed supports rapid sensor data conversion in advanced driver-assistance systems, such as camera-based object detection.
- Q: What is the LTC2313ITS8-14#TRMPBF?
- A: It is a 14-bit, 2.5M SPS analog-to-digital converter (ADC) from Analog Devices, featuring a S/H-ADC architecture.
- Q: What is the resolution?
- A: The resolution is 14 bits, offering a good balance between speed and precision.
- Q: What is the sampling rate?
- A: The sampling rate is 2.5M SPS (2.5 million samples per second), making it suitable for high-speed applications.
- Q: How many channels does it have?
- A: It has a single (1) input channel.
- Q: What interface does it support?
- A: It supports the SPI interface.
- Q: What is the package type?
- A: It comes in a SOT-23-8 Thin, TSOT-23-8 package, operating over -40°C to 85°C.
