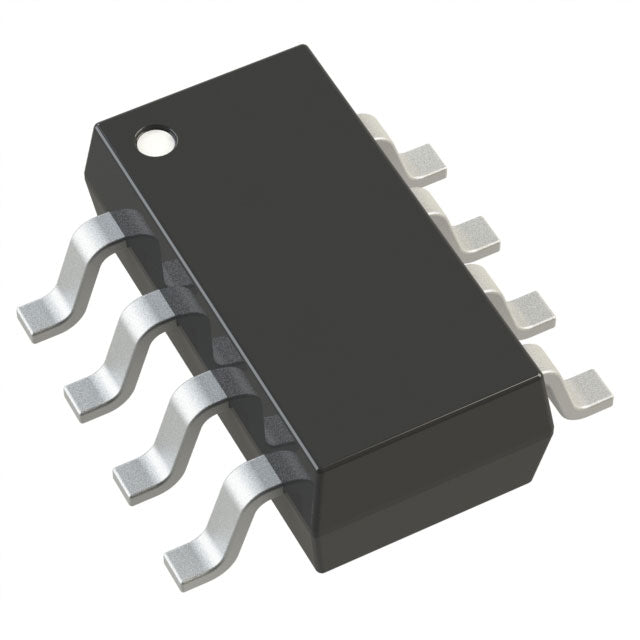

Analog Devices Inc. LTC2315HTS8-12#TRMPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $17.29 | $17.29 |
| 15+ | $16.74 | $251.10 |
| 25+ | $16.38 | $409.50 |
| 50+ | $15.47 | $773.50 |
| 100+ | $13.65 | $1,365.00 |
| N+ | $2.73 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 5M |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | Internal |
| Voltage - Supply, Analog | 2.7V ~ 3.6V, 5V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V, 5V |
| Features | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | SOT-23-8 Thin, TSOT-23-8 |
| Supplier Device Package | TSOT-23-8 |
| ROHS |  |
The LTC2315HTS8-12#TRMPBF from Analog Devices is a 12-bit, 5M SPS analog-to-digital converter featuring a successive approximation register (SAR) architecture. It offers a single input channel and communicates via a high-speed SPI interface. Packaged in a compact TSOT-23-8, this ADC is designed for space-constrained, high-speed applications including portable instrumentation, automotive systems, and industrial control.
- Ultra-Fast Sampling: 5M SPS rate enables capture of high-frequency signals for real-time processing.
- Compact Size: TSOT-23-8 package is ideal for space-limited designs.
- Wide Temperature Range: Operates from -40°C to 125°C, suitable for automotive and industrial environments.
- Low Power Consumption: Optimized for battery-powered and portable applications.
- Simple SPI Interface: Easy to connect to microcontrollers and FPGAs.
High-Speed Data Acquisition
The 5M SPS sampling rate of the LTC2315HTS8-12#TRMPBF makes it ideal for high-speed data acquisition systems, such as oscilloscopes and transient recorders.
Portable and Battery-Powered Devices
With its small TSOT-23 package and low power consumption, this ADC is perfect for portable instruments, handheld meters, and battery-operated sensors.
Communication Systems
In base stations and software-defined radios, the high-speed conversion capability supports digitization of IF signals for further digital processing.
Automotive Electronics
Operating from -40°C to 125°C, this ADC is suitable for automotive sensor interfaces, battery management systems, and motor control.
Industrial Control and Monitoring
Its fast sampling and SPI interface enable real-time monitoring and control in industrial automation, robotics, and power conversion systems.
Medical Imaging and Diagnostics
The high speed and precision make it suitable for ultrasound and other medical imaging equipment where rapid signal capture is essential.
- Q: What type of ADC is the LTC2315HTS8-12#TRMPBF?
- A: It is a 12-bit successive approximation (SAR) ADC with a sample-and-hold (S/H) circuit.
- Q: What is the resolution of this ADC?
- A: The LTC2315HTS8-12#TRMPBF has a 12-bit resolution.
- Q: What is the maximum sampling rate?
- A: It supports a high sampling rate of 5M SPS (5 million samples per second).
- Q: How many input channels does it have?
- A: It features a single (1) input channel.
- Q: What interface does it use?
- A: It uses a standard SPI interface for digital communication.
- Q: What is the package type?
- A: It is available in a SOT-23-8 Thin / TSOT-23-8 package.
