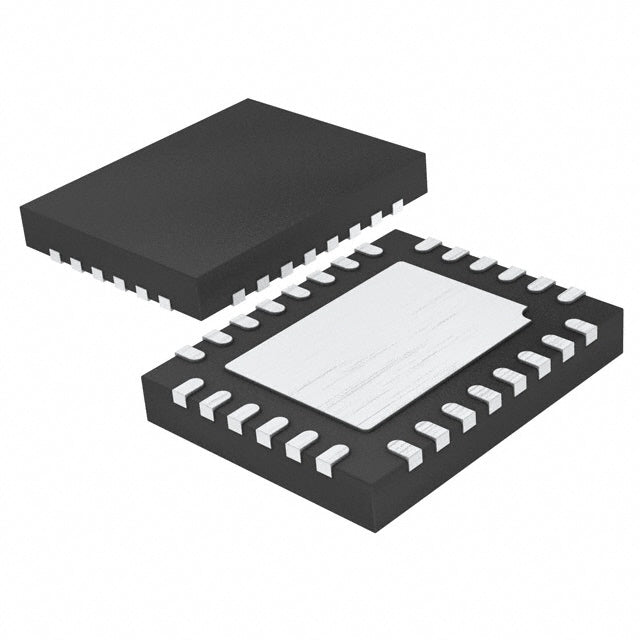

Analog Devices Inc. LTC2321CUFD-16#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $23.06 | $23.06 |
| 15+ | $22.33 | $334.95 |
| 25+ | $21.84 | $546.00 |
| 50+ | $20.63 | $1,031.50 |
| 100+ | $18.20 | $1,820.00 |
| N+ | $3.64 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 2M |
| Number of Inputs | 2 |
| Input Type | Differential, Pseudo-Differential |
| Data Interface | LVDS - Serial, Serial |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 2 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 3.13V ~ 3.47V, 5V |
| Voltage - Supply, Digital | 3.13V ~ 3.47V, 5V |
| Features | Simultaneous Sampling |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-WFQFN Exposed Pad |
| Supplier Device Package | 28-QFN (4x5) |
| ROHS |  |
The LTC2321CUFD-16#PBF from Analog Devices is a high-speed, 16-bit, 2-channel analog-to-digital converter (ADC). It boasts an impressive sampling rate of 2M SPS, making it ideal for demanding applications requiring fast and accurate data conversion. It features both LVDS and standard serial interfaces for flexible, low-noise digital data transfer. Housed in a compact 28-WFQFN package, this S/H-ADC is designed for high-performance medical imaging, communications, and industrial test equipment.
- High-Speed Performance: 2M SPS sampling rate enables the capture of fast-changing signals without missing critical data.
- Low-Noise Digital Output: LVDS serial interface minimizes digital switching noise, preserving signal integrity.
- Dual-Channel Simultaneous Sampling: Allows for precise phase and timing correlation between two input signals.
- High Resolution: 16-bit output provides excellent dynamic range for detecting small signal variations.
High-Speed Data Acquisition
The 2M SPS sampling rate and 16-bit resolution make it perfect for high-speed digitization in applications like transient recording and high-frequency signal analysis.
Medical Imaging Systems
The high speed and precision are suitable for digitizing signals in ultrasound and other medical imaging equipment where fast, accurate data conversion is critical.
Communications Infrastructure
Its high-speed serial LVDS interface allows for clean data transfer in base stations and software-defined radios, minimizing digital noise interference.
Industrial Test and Measurement
The dual-channel configuration and high sampling rate enable simultaneous acquisition of two signals, ideal for impedance spectroscopy and multi-sensor test equipment.
Scientific Instrumentation
Used in spectrometers and particle detectors where high-resolution, high-speed data conversion is required to capture fast transient events.
Avionics and Defense
The high-speed performance supports radar and electronic warfare systems that require rapid and precise signal digitization.
- Q: What is the resolution of the LTC2321CUFD-16#PBF?
- A: It is a 16-bit analog-to-digital converter (ADC).
- Q: What is the maximum sampling rate?
- A: The LTC2321CUFD-16#PBF supports a high sampling rate of 2M SPS.
- Q: How many input channels does it have?
- A: It features 2 input channels.
- Q: What interfaces does this ADC support?
- A: It supports both LVDS - Serial and standard Serial interfaces.
- Q: What is the architecture of this device?
- A: It uses a S/H-ADC (Sample and Hold - ADC) architecture.
- Q: What is the package type?
- A: It is available in a 28-WFQFN Exposed Pad package and operates from 0°C to 70°C.
