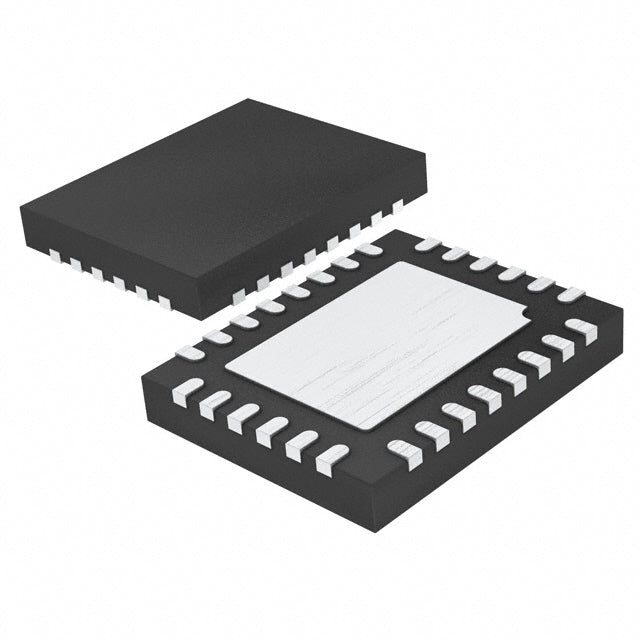

Analog Devices Inc. LTC2321IUFD-16#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $24.83 | $24.83 |
| 15+ | $24.05 | $360.75 |
| 25+ | $23.53 | $588.25 |
| 50+ | $22.22 | $1,111.00 |
| 100+ | $19.61 | $1,961.00 |
| N+ | $3.92 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 2M |
| Number of Inputs | 2 |
| Input Type | Differential, Pseudo-Differential |
| Data Interface | LVDS - Serial, Serial |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 2 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 3.13V ~ 3.47V, 5V |
| Voltage - Supply, Digital | 3.13V ~ 3.47V, 5V |
| Features | Simultaneous Sampling |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-WFQFN Exposed Pad |
| Supplier Device Package | 28-QFN (4x5) |
| ROHS |  |
The LTC2321IUFD-16#PBF is a high-performance 16-bit, 2 MSPS dual-channel ADC from Analog Devices. It features a sample-and-hold architecture and offers both serial LVDS and standard serial interfaces for flexible system integration. With an external or internal reference and a wide operating temperature range, this ADC is designed for demanding applications such as industrial automation, medical instrumentation, and high-speed data acquisition.
- High Resolution: 16-bit resolution ensures precise digital representation of analog signals, critical for high-accuracy measurement systems.
- Fast Sampling Rate: 2 MSPS enables capture of high-frequency signals without aliasing, ideal for real-time control and monitoring.
- Dual-Channel Input: Two channels allow simultaneous sampling of multiple signals, reducing system complexity and cost.
- Flexible Interface: LVDS and serial options provide design flexibility and noise-immune data transfer for high-speed digital systems.
High-Speed Data Acquisition Systems
The 2 MSPS sampling rate and 16-bit resolution make it ideal for high-speed data acquisition, ensuring accurate capture of fast transient signals.
Industrial Process Control
With dual channels and a wide temperature range, it can monitor multiple sensors in industrial automation, providing precise digital feedback for control loops.
Medical Instrumentation
The high resolution and low noise performance are critical for medical imaging and patient monitoring systems where signal fidelity is paramount.
Automotive Sensor Interfaces
Its robust design and dual-channel capability suit automotive applications like battery management systems, where accurate voltage and current sensing are required.
Precision Test and Measurement
The combination of 16-bit resolution and serial LVDS interface allows for high-throughput, noise-immune data transfer in benchtop and portable test equipment.
Communications Infrastructure
In base stations and radar systems, the high sampling rate and resolution help digitize IF signals with high dynamic range for further digital processing.
- Q: What is the resolution of the LTC2321IUFD-16#PBF?
- A: It is a 16-bit ADC.
- Q: What is the sampling rate?
- A: The sampling rate is 2 MSPS.
- Q: How many channels does it have?
- A: It has 2 input channels.
- Q: What interface does it use?
- A: It features a serial LVDS interface and a standard serial interface.
- Q: What is the architecture?
- A: It uses a S/H-ADC (Sample and Hold) architecture.
- Q: What package is available?
- A: It comes in a 28-WFQFN Exposed Pad package.
