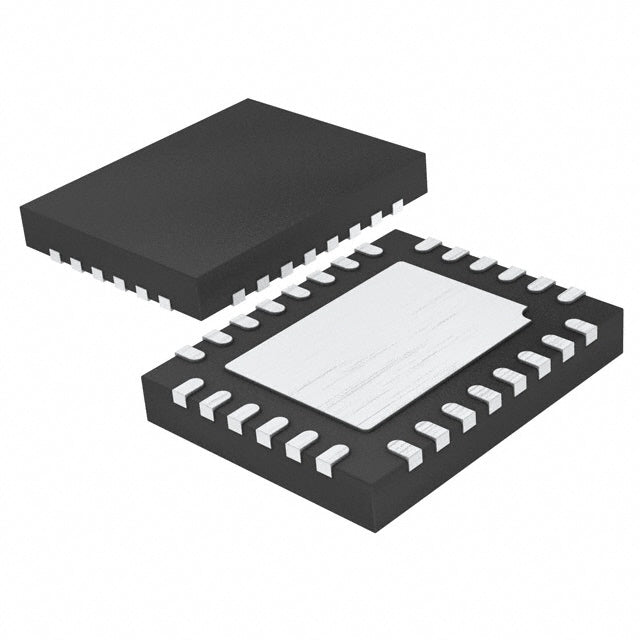

Analog Devices Inc. LTC2323CUFD-12#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $17.52 | $17.52 |
| 15+ | $16.96 | $254.40 |
| 25+ | $16.60 | $415.00 |
| 50+ | $15.67 | $783.50 |
| 100+ | $13.83 | $1,383.00 |
| N+ | $2.77 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 5M |
| Number of Inputs | 2 |
| Input Type | Differential, Pseudo-Differential |
| Data Interface | LVDS - Serial, Serial |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 2 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 3.13V ~ 3.47V, 5V |
| Voltage - Supply, Digital | 3.13V ~ 3.47V, 5V |
| Features | Simultaneous Sampling |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-WFQFN Exposed Pad |
| Supplier Device Package | 28-QFN (4x5) |
| ROHS |  |
The LTC2323CUFD-12#PBF is a high-speed 12-bit analog-to-digital converter from Analog Devices Inc., engineered for demanding dual-channel data acquisition. With a sampling rate of 5M SPS, it captures fast-changing signals with excellent fidelity. The device features both LVDS and serial interfaces, providing flexible, low-noise connectivity to FPGAs and DSPs. Its S/H-ADC architecture ensures accurate sampling, while the 28-WFQFN exposed pad package aids thermal management. Operating from 0°C to 70°C, the LTC2323CUFD-12#PBF is ideal for medical imaging, automotive radar, industrial control, and telecommunications.
- High-Speed Performance: 5M SPS sampling rate captures fast transients, essential for radar and imaging systems.
- Dual-Channel Simultaneous Sampling: Two channels preserve phase relationships between signals, critical for I/Q demodulation and power monitoring.
- Flexible High-Speed Interface: LVDS serial output reduces digital noise and supports long-distance data transmission.
- Thermally Efficient Package: 28-WFQFN exposed pad design improves heat dissipation, ensuring stable operation at high speeds.
- Reference Options: External or internal reference allows optimization for accuracy or component count.
High-Speed Data Acquisition Systems
The LTC2323CUFD-12#PBF with 5M SPS sampling rate and dual channels is perfect for digitizing fast waveforms in oscilloscopes and spectrum analyzers. The LVDS interface ensures high-speed data transfer without signal degradation.
Medical Imaging Equipment
In ultrasound and CT scanners, the LTC2323CUFD-12#PBF provides 12-bit resolution at 5M SPS, capturing fine details in medical images. The dual-channel capability supports simultaneous I/Q signal processing.
Automotive Radar and Lidar
For advanced driver-assistance systems (ADAS), this ADC digitizes radar return signals with high speed and accuracy. The 0°C to 70°C temperature range suits under-hood or sensor module environments.
Industrial Motor Control
The LTC2323CUFD-12#PBF monitors phase currents and voltages in servo drives and inverters. Its 5M SPS rate enables precise real-time control loops, improving motor efficiency and torque ripple reduction.
Telecommunications Base Stations
In 5G and LTE transceivers, the ADC digitizes IF signals with high dynamic range. The LVDS interface reduces EMI, and the small WFQFN package fits dense RF front-end boards.
Scientific Research Instruments
For particle detectors and spectroscopy, the LTC2323CUFD-12#PBF offers fast, accurate conversion. The external/internal reference options allow calibration for precise measurements.
- Q: What is the LTC2323CUFD-12#PBF?
- A: The LTC2323CUFD-12#PBF is a 12-bit analog-to-digital converter with a S/H-ADC architecture, designed for high-speed, dual-channel data acquisition.
- Q: What is the resolution of the LTC2323CUFD-12#PBF?
- A: It provides 12-bit resolution, delivering 4096 levels of digital output for accurate signal representation.
- Q: What is the sampling rate of the LTC2323CUFD-12#PBF?
- A: The device supports a high sampling rate of 5M SPS (5 million samples per second), suitable for fast transient signals.
- Q: How many channels does the LTC2323CUFD-12#PBF have?
- A: It features 2 input channels, allowing simultaneous sampling of two differential signals for phase-critical applications.
- Q: What interface does the LTC2323CUFD-12#PBF use?
- A: It offers both LVDS serial and standard serial interfaces, providing high-speed data transfer with low noise for digital systems.
- Q: What is the package of the LTC2323CUFD-12#PBF?
- A: The LTC2323CUFD-12#PBF comes in a 28-WFQFN exposed pad package, which aids thermal dissipation for reliable operation.
