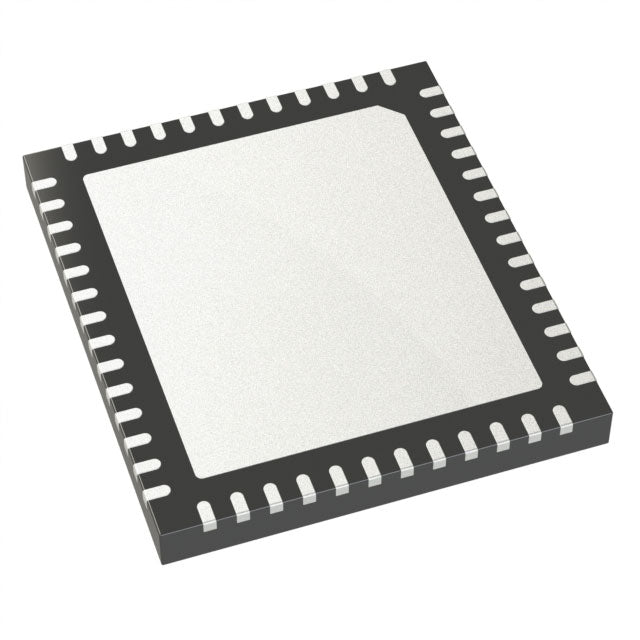

Analog Devices Inc. LTC2325CUKG-12#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $24.83 | $24.83 |
| 15+ | $24.05 | $360.75 |
| 25+ | $23.53 | $588.25 |
| 50+ | $22.22 | $1,111.00 |
| 100+ | $19.61 | $1,961.00 |
| N+ | $3.92 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 5M |
| Number of Inputs | 4 |
| Input Type | Differential |
| Data Interface | LVDS - Parallel, SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 4 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 3.13V ~ 3.47V, 5V |
| Voltage - Supply, Digital | 3.13V ~ 3.47V, 5V |
| Features | Simultaneous Sampling |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 52-WFQFN Exposed Pad |
| Supplier Device Package | 52-QFN (7x8) |
| ROHS |  |
The LTC2325CUKG-12#PBF is a 12-bit, 4-channel analog-to-digital converter from Analog Devices. It offers a sampling rate of 5M SPS with a sample-and-hold architecture. The device supports both LVDS - Parallel and SPI interfaces, providing flexible high-speed data transfer options. Operating from 0°C to 70°C in a 52-WFQFN package, it is ideal for medical imaging, automotive, and industrial applications.
- 4-Channel Simultaneous Sampling: Reduces system complexity and cost.
- High-Speed LVDS Interface: Ensures noise-immune data transmission.
- Compact Package: 52-WFQFN for space-constrained designs.
- Versatile Interface Options: LVDS and SPI for design flexibility.
Multi-Channel High-Speed Data Acquisition
4 channels at 5M SPS enable simultaneous sampling of multiple signals in industrial systems.
Medical Ultrasound Imaging
High-speed multi-channel conversion supports real-time ultrasound signal processing.
Automotive Radar Systems
Fast sampling and multiple channels enable precise object detection in ADAS applications.
Industrial Motor Control
Multi-channel current and voltage sensing improves motor control accuracy.
Portable Instrumentation
Low-power operation in a compact package supports battery-powered devices.
Communications Infrastructure
LVDS interface provides noise-immune data transfer for base station equipment.
- Q: What is the resolution of the LTC2325CUKG-12#PBF?
- A: It is a 12-bit analog-to-digital converter.
- Q: What is the sampling rate?
- A: It supports a sampling rate of 5M SPS.
- Q: How many channels are available?
- A: This device has 4 input channels.
- Q: What interfaces are supported?
- A: It supports LVDS - Parallel and SPI interfaces.
- Q: What is the architecture?
- A: It uses a S/H-ADC architecture.
- Q: What package is it in?
- A: It comes in a 52-WFQFN Exposed Pad package.
