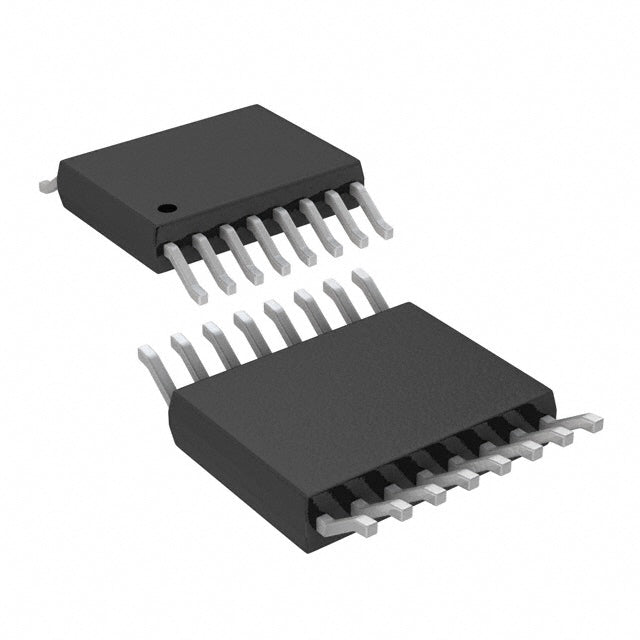

Analog Devices Inc. LTC2326CMS-18#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $39.04 | $39.04 |
| 15+ | $37.80 | $567.00 |
| 25+ | $36.98 | $924.50 |
| 50+ | $34.93 | $1,746.50 |
| 100+ | $30.82 | $3,082.00 |
| N+ | $6.16 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 18 |
| Sampling Rate (Per Second) | 250k |
| Number of Inputs | 1 |
| Input Type | Pseudo-Differential |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 16-TFSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 16-MSOP |
| ROHS |  |
The LTC2326CMS-18#PBF is a precision 18-bit analog-to-digital converter from Analog Devices, offering a sampling rate of 250k SPS. With a single input channel and SPI interface, it provides a straightforward solution for high-accuracy data conversion. The device supports both external and internal references, giving designers flexibility in various applications. Its sample-and-hold architecture ensures reliable performance in industrial, medical, and energy monitoring systems.
