Analog Devices Inc. LTC2336CMS-18#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $39.04 | $39.04 |
| 15+ | $37.80 | $567.00 |
| 25+ | $36.98 | $924.50 |
| 50+ | $34.93 | $1,746.50 |
| 100+ | $30.82 | $3,082.00 |
| N+ | $6.16 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 18 |
| Sampling Rate (Per Second) | 250k |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 16-TFSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 16-MSOP |
| ROHS |  |

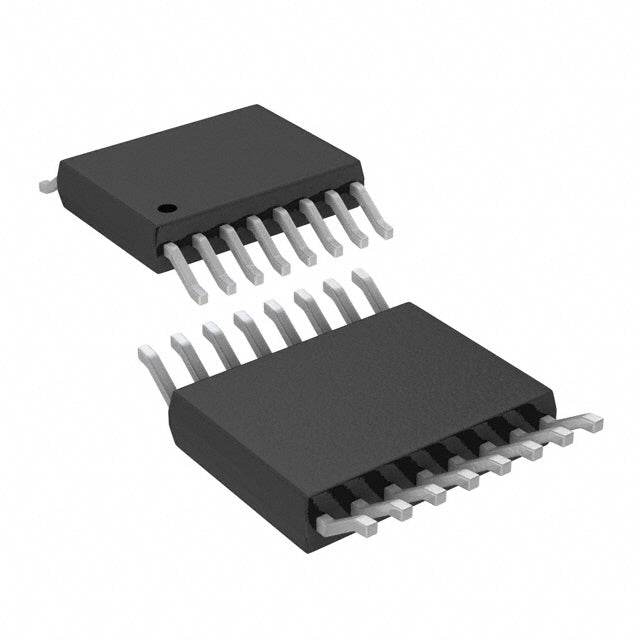

The LTC2336CMS-18#PBF is a high-resolution 18-bit analog-to-digital converter from Analog Devices, optimized for precision measurement applications. It features a single channel and a maximum sampling rate of 250k SPS, balancing speed and accuracy. The device supports both external and internal references, providing flexibility in system design. With an SPI interface and a compact 16-pin TFSOP package, it is easy to integrate into a wide range of commercial electronic systems. It operates within a temperature range of 0°C to 70°C.
- High Resolution: 18-bit accuracy ensures extremely fine signal detail, critical for precision measurement and control.
- Flexible Reference Options: Supports both external and internal references, allowing designers to optimize for accuracy or simplicity.
- Easy Integration: The SPI interface simplifies connection to standard digital systems, reducing development time.
- Reliable Performance: Designed for commercial temperature ranges (0°C to 70°C), ensuring stable operation in typical business environments.
Precision Data Acquisition Systems
The 18-bit resolution and 250k SPS sampling rate make the LTC2336CMS-18#PBF ideal for high-accuracy data acquisition in industrial automation and process control.
Medical Instrumentation
In devices like patient monitors and diagnostic equipment, this ADC ensures precise conversion of biosignals, aiding in accurate diagnosis.
Energy Monitoring and Smart Grid
For power quality analyzers and smart meters, the high resolution allows for precise measurement of voltage and current waveforms, improving energy efficiency.
Laboratory Test Equipment
Its SPI interface and high precision make it suitable for benchtop multimeters and precision calibrators used in R&D and metrology labs.
Audio and Vibration Analysis
The LTC2336CMS-18#PBF can be used in high-end audio test equipment and vibration analysis systems to capture fine details in signals.
- Q: What is the LTC2336CMS-18#PBF?
- A: It is an 18-bit, 250k SPS analog-to-digital converter from Analog Devices with a sample-and-hold architecture.
- Q: What is the resolution?
- A: The LTC2336CMS-18#PBF offers 18-bit resolution, providing high precision for accurate signal digitization.
- Q: What is the sampling rate?
- A: It supports a maximum sampling rate of 250k SPS, suitable for high-resolution, moderate-speed applications.
- Q: How many channels does it have?
- A: This ADC features a single input channel.
- Q: What interface does it use?
- A: It uses an SPI interface for communication with microcontrollers and DSPs.
- Q: What is the operating temperature range?
- A: The device operates from 0°C to 70°C, making it suitable for commercial applications.
