Analog Devices Inc. LTC2344IUH-18#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $41.65 | $41.65 |
| 15+ | $40.33 | $604.95 |
| 25+ | $39.46 | $986.50 |
| 50+ | $37.26 | $1,863.00 |
| 100+ | $32.88 | $3,288.00 |
| N+ | $6.58 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | SoftSpan™ |
| Packaging | Tube | |
| Number of Bits | 18 |
| Sampling Rate (Per Second) | 400k |
| Number of Inputs | 4 |
| Input Type | Differential |
| Data Interface | LVDS - Serial, SPI |
| Configuration | S/H-MUX-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 4 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | Simultaneous Sampling |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |

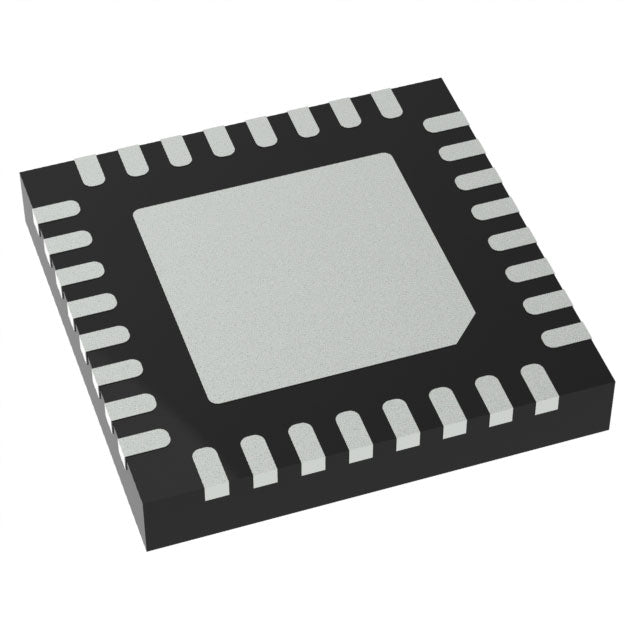

| Package / Case | 32-WFQFN Exposed Pad |
| Supplier Device Package | 32-QFN (5x5) |
| ROHS |  |
The LTC2344IUH-18#PBF from Analog Devices is a high-precision, 18-bit analog-to-digital converter (ADC) featuring 4 input channels for multi-channel data acquisition. With a sampling rate of 400k SPS, it balances speed and accuracy for demanding applications. The device supports both LVDS serial and SPI interfaces, providing flexible connectivity. Its sample-and-hold multiplexed architecture and support for external or internal references ensure excellent performance in industrial process control, medical instrumentation, and scientific research.
- High Resolution: 18-bit resolution provides exceptional accuracy for precision measurement applications.
- Multi-Channel Capability: 4 input channels enable simultaneous sampling of multiple signals, saving board space and cost.
- Flexible Interfaces: LVDS serial and SPI interfaces allow easy integration with various digital systems.
- Wide Temperature Range: Operates reliably from -40°C to 85°C, suitable for industrial environments.
Multi-Channel Data Acquisition Systems
The LTC2344IUH-18#PBF's 4 channels and 18-bit resolution make it ideal for multi-channel data acquisition systems, enabling precise simultaneous measurement of multiple sensors.
Industrial Process Control
In industrial automation, this ADC provides high-precision conversion for process control loops, ensuring accurate monitoring and regulation of critical parameters.
Medical Instrumentation
For medical devices like patient monitors and diagnostic equipment, the high resolution and multi-channel capability support accurate and reliable measurements.
Precision Weighing and Force Sensing
The 18-bit resolution ensures highly accurate readings in precision weighing and force sensing applications, improving quality control.
Scientific Research Equipment
In laboratory instruments, the LTC2344IUH-18#PBF delivers the precision needed for accurate scientific measurements and experiments.
Energy and Power Monitoring
For power quality analyzers and energy meters, this ADC enables precise measurement of voltage and current signals across multiple phases.
- Q: What type of ADC is the LTC2344IUH-18#PBF?
- A: The LTC2344IUH-18#PBF is an 18-bit, 4-channel analog-to-digital converter (ADC) with a sample-and-hold, multiplexed (S/H-MUX) architecture.
- Q: What is the resolution of the LTC2344IUH-18#PBF?
- A: It offers 18-bit resolution, providing extremely high precision for demanding measurement applications.
- Q: What is the maximum sampling rate of the LTC2344IUH-18#PBF?
- A: The ADC supports a maximum sampling rate of 400k SPS, suitable for multi-channel, high-precision data acquisition.
- Q: How many input channels does the LTC2344IUH-18#PBF have?
- A: It features 4 input channels, allowing simultaneous sampling of multiple analog signals.
- Q: What digital interfaces are available on the LTC2344IUH-18#PBF?
- A: It provides both LVDS serial and SPI interfaces, offering flexible and high-speed digital communication.
- Q: What is the package type for the LTC2344IUH-18#PBF?
- A: The device is available in a 32-WFQFN Exposed Pad package, which helps with thermal management in compact designs.
