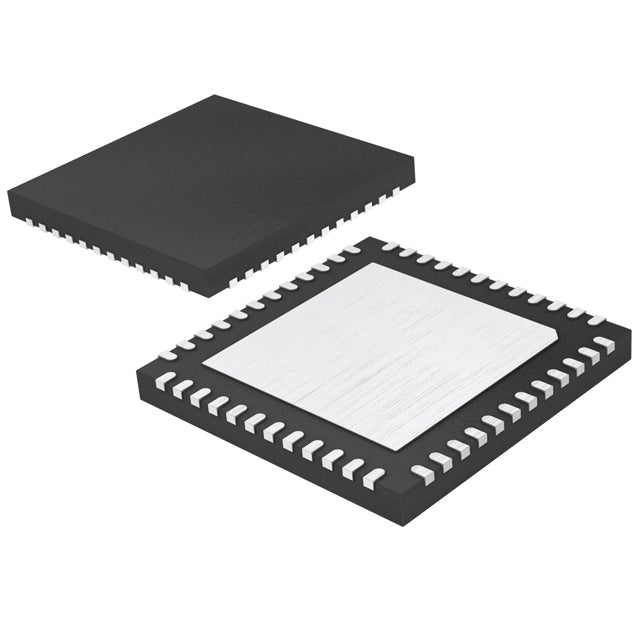

Analog Devices Inc. LTC2345IUK-16#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $34.44 | $34.44 |
| 15+ | $33.35 | $500.25 |
| 25+ | $32.63 | $815.75 |
| 50+ | $30.81 | $1,540.50 |
| 100+ | $27.19 | $2,719.00 |
| N+ | $5.44 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | SoftSpan™ |
| Packaging | Tube | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 200k |
| Number of Inputs | 8 |
| Input Type | Differential |
| Data Interface | LVDS - Serial, SPI |
| Configuration | S/H-MUX-ADC |
| Ratio - S/H:ADC | 8:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | Simultaneous Sampling |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 48-WFQFN Exposed Pad |
| Supplier Device Package | 48-QFN (7x7) |
| ROHS |  |
The LTC2345IUK-16#PBF from Analog Devices is a 16-bit, 8-channel analog-to-digital converter with a sampling rate of 200k SPS. It features an S/H-MUX-ADC architecture and supports both LVDS - Serial and SPI interfaces for flexible data transfer. With external or internal reference options and a wide operating temperature range, this ADC is designed for multi-channel data acquisition, industrial automation, and medical instrumentation applications.
- High Resolution: 16-bit resolution ensures precise digitization of analog signals for demanding measurement applications.
- Multi-Channel Efficiency: 8 input channels allow simultaneous sampling of multiple signals, reducing system complexity.
- Flexible Interface: LVDS - Serial and SPI interfaces provide high-speed data transfer and easy integration with microcontrollers.
- Wide Temperature Range: Operates from -40°C to 85°C, suitable for industrial and automotive environments.
Multi-Channel Data Acquisition Systems
The 8-channel input and 200k SPS sampling rate make it ideal for high-channel-count data acquisition systems, enabling simultaneous sampling of multiple analog signals with 16-bit precision.
Industrial Automation and Control
With a wide -40°C to 85°C temperature range and SPI interface, this ADC is well-suited for industrial automation, providing accurate digitization of sensor signals in harsh environments.
Medical Instrumentation
The high resolution and low noise performance of the LTC2345IUK-16#PBF support precise measurements in medical devices such as patient monitoring systems and diagnostic equipment.
Power System Monitoring
Its 8 channels can monitor multiple voltage and current points in power systems, while the external/internal reference options provide flexibility for accurate scaling.
Portable Test Equipment
The compact 48-WFQFN package and low power consumption enable integration into portable test instruments requiring high-resolution, multi-channel analog-to-digital conversion.
- Q: What is the resolution of the LTC2345IUK-16#PBF?
- A: The LTC2345IUK-16#PBF is a 16-bit ADC.
- Q: What is the sampling rate of this ADC?
- A: It has a sampling rate of 200k SPS.
- Q: How many input channels does it support?
- A: It features 8 input channels.
- Q: What interface does the LTC2345IUK-16#PBF use?
- A: It supports LVDS - Serial and SPI interfaces.
- Q: What is the architecture of this converter?
- A: It uses an S/H-MUX-ADC architecture.
- Q: What package is the LTC2345IUK-16#PBF available in?
- A: It comes in a 48-WFQFN Exposed Pad package.
