Analog Devices Inc. LTC2355IMSE-14#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $23.88 | $23.88 |
| 15+ | $23.13 | $346.95 |
| 25+ | $22.63 | $565.75 |
| 50+ | $21.37 | $1,068.50 |
| 100+ | $18.86 | $1,886.00 |
| N+ | $3.77 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 3.5M |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 3.1V ~ 3.6V |
| Voltage - Supply, Digital | 3.1V ~ 3.6V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |

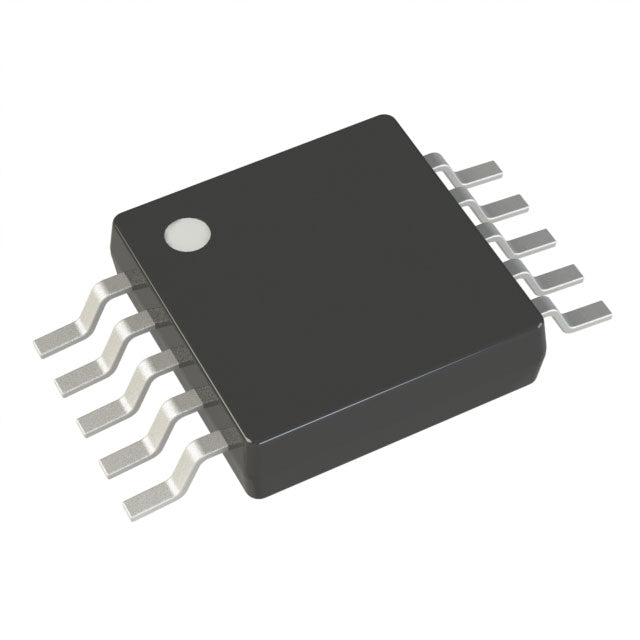

| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 10-MSOP-EP |
| ROHS |  |
The LTC2355IMSE-14#PBF from Analog Devices is a compact, high-speed 14-bit analog-to-digital converter. It delivers a fast 3.5 MSPS sampling rate through a simple SPI interface, making it easy to connect to modern microcontrollers. Its sample-and-hold architecture ensures accurate conversion of dynamic signals. The small 10-MSOP package with exposed pad is ideal for space-constrained applications in portable instrumentation, industrial control, and medical devices.
- High Speed in Small Package: 3.5 MSPS in a tiny MSOP package, perfect for portable and compact designs.
- Simple SPI Interface: Reduces pin count and simplifies PCB layout, saving board space.
- Low Power Operation: Suitable for battery-powered devices, extending operational life.
- Flexible Reference: Supports external or internal reference, providing design flexibility.
- Robust Temperature Range: Operates from -40°C to 85°C, ensuring reliability in harsh conditions.
High-Speed Portable Instrumentation
The 3.5 MSPS sampling rate combined with a small MSOP package makes it ideal for battery-powered devices requiring fast, accurate measurements.
Industrial Data Acquisition
Its SPI interface and 14-bit resolution provide a balanced solution for industrial sensors needing moderate speed and good precision.
Medical Devices
Low power consumption and small footprint are critical for implantable or wearable medical monitors, where space and battery life are constrained.
Automotive Sensor Interfaces
The wide temperature range and robust design make it suitable for automotive applications like battery management systems and motor control.
Communication Systems
Fast sampling and serial output simplify integration into baseband processing chains for digital communication links.
Precision Control Loops
High-speed conversion enables tighter control loops in power supplies and motor drives, improving stability and efficiency.
- Q: What is the resolution of the LTC2355IMSE-14?
- A: It is a 14-bit analog-to-digital converter.
- Q: What is the maximum sampling rate?
- A: It supports a sampling rate of 3.5 MSPS.
- Q: How many input channels does it have?
- A: It has a single input channel.
- Q: What digital interface does it use?
- A: It uses a standard SPI serial interface.
- Q: What is the architecture of this ADC?
- A: It uses a sample-and-hold (S/H-ADC) architecture.
- Q: What package is available?
- A: It comes in a 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad package.
