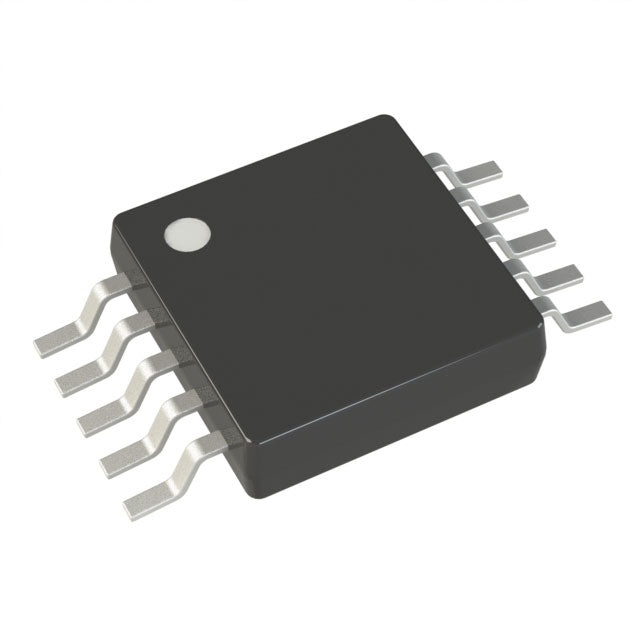

Analog Devices Inc. LTC2355IMSE-14#TRPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $23.88 | $23.88 |
| 15+ | $23.13 | $346.95 |
| 25+ | $22.63 | $565.75 |
| 50+ | $21.37 | $1,068.50 |
| 100+ | $18.86 | $1,886.00 |
| N+ | $3.77 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 3.5M |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 3.1V ~ 3.6V |
| Voltage - Supply, Digital | 3.1V ~ 3.6V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 10-MSOP-EP |
| ROHS |  |
The LTC2355IMSE-14#TRPBF is a high-speed 14-bit analog-to-digital converter from Analog Devices, optimized for applications requiring fast and accurate signal conversion. It features a single input channel and a maximum sampling rate of 3.5 MSPS. The device supports both external and internal references and communicates via SPI. Housed in a compact 10-MSOP Exposed Pad package, it is ideal for high-speed data acquisition, communication, and portable instrumentation.
- High-Speed Sampling: 3.5 MSPS enables capture of fast transient signals and high-frequency waveforms.
- Compact Size: The 10-MSOP package is ideal for space-constrained portable devices.
- Flexible Reference: Supports both internal and external references for design flexibility.
- Low Power: Designed for power-sensitive applications, extending battery life in portable equipment.
- SPI Interface: Simple digital interface for easy integration with microcontrollers.
High-Speed Data Acquisition
The 3.5 MSPS sampling rate of the LTC2355IMSE-14#TRPBF makes it ideal for high-speed data acquisition systems in test and measurement equipment.
Digital Oscilloscopes
Its fast sampling capability enables accurate digitization of high-frequency waveforms for oscilloscope applications.
Communication Systems
The high speed and SPI interface make it suitable for IF sampling in software-defined radios and communication receivers.
Medical Imaging
In ultrasound and other imaging systems, the high sampling rate helps capture fast-changing signals for better image quality.
Industrial Control
Its speed and accuracy are beneficial in high-speed industrial control loops and motor control applications.
Portable Test Instruments
The small MSOP package and low power consumption make it suitable for portable spectrum analyzers and signal generators.
- Q: What is the LTC2355IMSE-14#TRPBF?
- A: It is a 14-bit analog-to-digital converter from Analog Devices with a S/H-ADC architecture.
- Q: What is the resolution of the LTC2355IMSE-14#TRPBF?
- A: It provides 14-bit resolution, balancing speed and accuracy for various applications.
- Q: What is the sampling rate of the LTC2355IMSE-14#TRPBF?
- A: It supports a high maximum sampling rate of 3.5 MSPS (3.5M).
- Q: How many channels does the LTC2355IMSE-14#TRPBF have?
- A: It has a single input channel (1 channel).
- Q: What interface does the LTC2355IMSE-14#TRPBF use?
- A: It uses a standard SPI interface for data transfer.
- Q: What is the package of the LTC2355IMSE-14#TRPBF?
- A: It is available in a 10-TFSOP, 10-MSOP Exposed Pad package.
