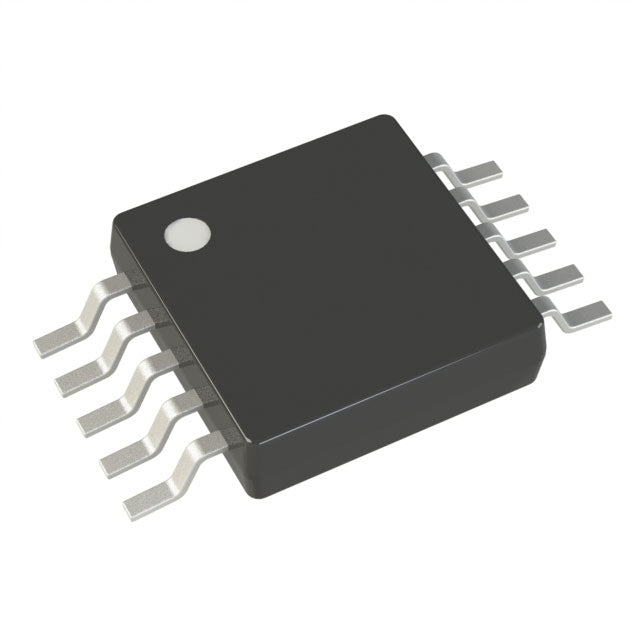

Analog Devices Inc. LTC2356IMSE-14#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $23.10 | $23.10 |
| 15+ | $22.37 | $335.55 |
| 25+ | $21.89 | $547.25 |
| 50+ | $20.67 | $1,033.50 |
| 100+ | $18.24 | $1,824.00 |
| N+ | $3.65 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 3.5M |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 3.1V ~ 3.6V |
| Voltage - Supply, Digital | 3.1V ~ 3.6V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 10-MSOP-EP |
| ROHS |  |
The LTC2356IMSE-14#PBF is a high-speed, 14-bit, single-channel analog-to-digital converter (ADC) from Analog Devices. It offers an impressive sampling rate of 3.5M SPS, making it perfect for applications that require fast and accurate signal digitization. With a simple SPI interface and a compact 10-MSOP package, it is designed for easy integration into space-constrained embedded systems, portable instruments, and industrial control applications.
- Ultra-Fast Sampling: 3.5M SPS allows for the digitization of high-frequency signals with high fidelity.
- Compact Form Factor: The small 10-MSOP package is ideal for space-limited PCB designs.
- Easy Integration: Standard SPI interface simplifies connection to microcontrollers and DSPs.
- Wide Temperature Range: -40°C to 85°C operation ensures reliability in demanding environments.
High-Frequency Signal Analysis
The 3.5M SPS sampling rate makes it suitable for digitizing high-frequency signals in applications like vibration analysis and acoustics.
Portable Instrumentation
The small 10-MSOP package and SPI interface make it ideal for compact, battery-powered test equipment and data loggers.
Optical Sensor Interfaces
Its high speed allows for fast readout of photodiode signals in LIDAR and optical communication systems.
Industrial Process Control
The fast sampling rate enables rapid monitoring of control loop feedback signals, improving system response time.
Automotive Sensor Digitization
With a wide temperature range, it can be used in automotive environments for digitizing fast sensor signals like knock sensors or pressure transducers.
Embedded Systems
The simple SPI interface makes it easy to connect to a wide variety of microcontrollers for general-purpose high-speed data acquisition.
- Q: What is the resolution of the LTC2356IMSE-14#PBF?
- A: This ADC has a resolution of 14 bits.
- Q: What is the sampling rate?
- A: It supports a sampling rate of 3.5M SPS.
- Q: How many channels does it have?
- A: It is a single-channel (1 channel) ADC.
- Q: What interface does it use?
- A: It uses a standard SPI (Serial Peripheral Interface).
- Q: What is the architecture?
- A: It uses a S/H-ADC (Sample and Hold - ADC) architecture.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C and comes in a 10-MSOP package with exposed pad.
