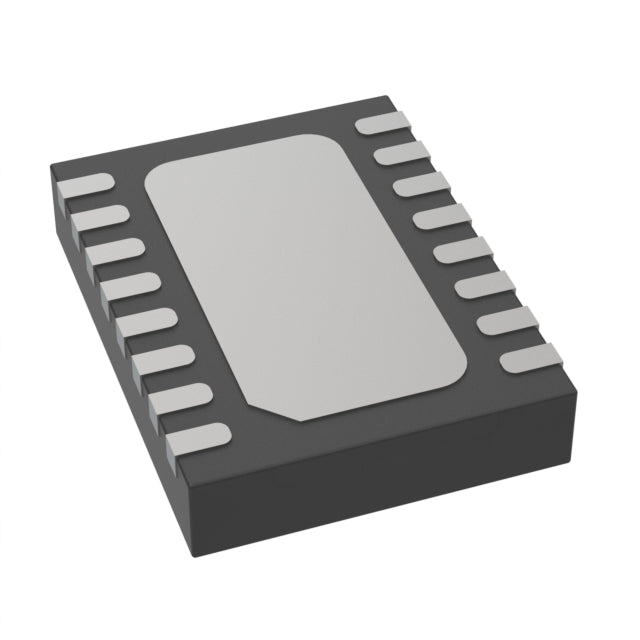

Analog Devices Inc. LTC2364IDE-16#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $22.68 | $22.68 |
| 15+ | $21.96 | $329.40 |
| 25+ | $21.48 | $537.00 |
| 50+ | $20.29 | $1,014.50 |
| 100+ | $17.90 | $1,790.00 |
| N+ | $3.58 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 250k |
| Number of Inputs | 1 |
| Input Type | Pseudo-Differential |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 2.375V ~ 2.625V |
| Voltage - Supply, Digital | 2.375V ~ 2.625V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 16-WFDFN Exposed Pad |
| Supplier Device Package | 16-DFN (4x3) |
| ROHS |  |
The LTC2364IDE-16#PBF is a 16-bit Analog-to-Digital Converter (ADC) from Analog Devices, designed for precision measurement applications. It offers a sampling rate of 250 kSPS with a single input channel, providing high accuracy for sensor digitization. The SPI interface ensures simple and reliable communication with microcontrollers. With an S/H-ADC architecture and external reference support, this converter delivers excellent performance. Packaged in a compact 16-WFDFN, it operates over an industrial temperature range of -40°C to 85°C, making it suitable for medical, industrial, and laboratory equipment.
- High Precision: 16-bit resolution provides exceptional detail for accurate measurements.
- Simple SPI Interface: Easy integration with microcontrollers and digital systems.
- Low Power: Suitable for battery-powered portable devices.
- Compact Size: 16-WFDFN package saves valuable board space.
Precision Sensor Interfaces
The LTC2364IDE-16#PBF's 16-bit resolution and 250 kSPS rate make it ideal for precision sensors like pressure transducers and temperature probes, where accurate digitization is critical.
Portable Medical Devices
In portable health monitors, the low power consumption and SPI interface enable efficient battery operation while maintaining high measurement accuracy.
Industrial Process Control
For industrial automation, this ADC digitizes analog control signals with high precision. Its wide temperature range ensures reliable operation in factory environments.
Data Logging Systems
The SPI interface simplifies connection to microcontrollers for data logging applications, making it easy to capture and store sensor data over time.
Energy Monitoring
In smart grid and energy metering, the high resolution allows for accurate measurement of voltage and current, improving billing accuracy and grid management.
Laboratory Instruments
For benchtop multimeters and precision sources, the 16-bit resolution provides the fine detail needed for accurate scientific measurements.
- Q: What is the resolution of the LTC2364IDE-16#PBF?
- A: The LTC2364IDE-16#PBF is a 16-bit Analog-to-Digital Converter (ADC).
- Q: What is the sampling rate?
- A: It supports a sampling rate of 250 kSPS (250,000 samples per second).
- Q: How many channels does it have?
- A: It features a single (1) input channel.
- Q: What interface does it use?
- A: It uses an SPI interface for easy digital communication.
- Q: What is the architecture?
- A: It uses a Sample-and-Hold (S/H-ADC) architecture.
- Q: What is the package and temperature range?
- A: It comes in a 16-WFDFN package and operates from -40°C to 85°C.
