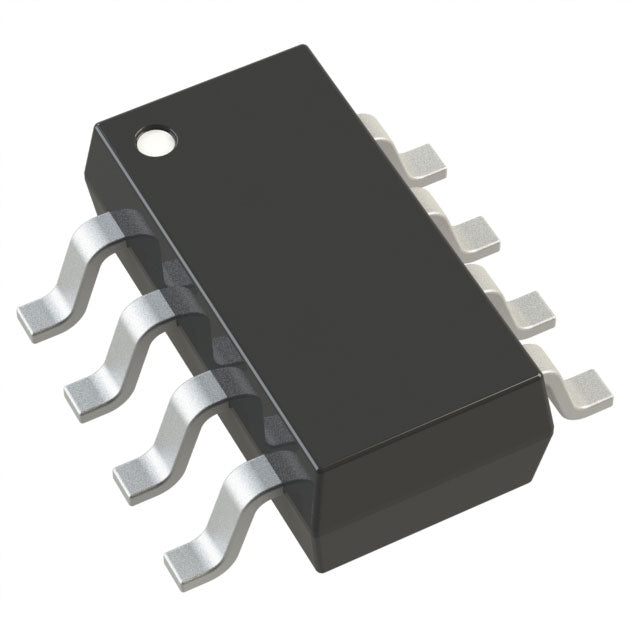

Analog Devices Inc. LTC2366CTS8#TRMPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $14.80 | $14.80 |
| 15+ | $14.33 | $214.95 |
| 25+ | $14.02 | $350.50 |
| 50+ | $13.24 | $662.00 |
| 100+ | $11.69 | $1,169.00 |
| N+ | $2.34 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 3M |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 2.35V ~ 3.6V |
| Voltage - Supply, Digital | 2.35V ~ 3.6V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | SOT-23-8 Thin, TSOT-23-8 |
| Supplier Device Package | TSOT-23-8 |
| ROHS |  |
The LTC2366CTS8#TRMPBF from Analog Devices is a compact 12-bit analog-to-digital converter (ADC) designed for high-speed, space-constrained applications. It features a single input channel and a sampling rate of 3 MSPS, enabling accurate conversion of moderate-speed signals. The device uses an external reference and communicates via an SPI interface, ensuring easy integration with digital systems. Housed in a small SOT-23-8 Thin package, this ADC is well-suited for portable instrumentation, motor control, and consumer electronics where board space is at a premium.
- Compact Footprint: The SOT-23-8 Thin package is ideal for miniaturized designs, allowing for high-density PCB layouts.
- Fast Sampling: 3 MSPS sampling rate supports real-time processing of dynamic signals in control and communication systems.
- Easy Digital Integration: The SPI interface simplifies connectivity with standard microcontrollers, reducing design complexity.
- Low Power Operation: Designed for efficiency, making it suitable for battery-powered and portable applications.
Portable Instrumentation
The compact TSOT-23-8 package and low power consumption make the LTC2366CTS8#TRMPBF ideal for battery-powered devices like handheld multimeters and portable data loggers.
Motor Control Systems
With a 3 MSPS sampling rate, this ADC can digitize current and voltage feedback signals in motor drives, enabling precise and responsive control loops.
Communication Systems
In wireless communication devices, the LTC2366CTS8#TRMPBF converts analog baseband signals into digital data, supporting efficient signal processing in compact form factors.
Consumer Electronics
For audio and sensor interfaces in consumer gadgets, this ADC provides a balance of speed and size, making it suitable for smart home devices and wearables.
Automotive Electronics
In automotive sensor interfaces, the SPI interface and small footprint allow for easy integration into engine control units (ECUs) for monitoring various parameters.
- Q: What is the LTC2366CTS8#TRMPBF?
- A: It is a 12-bit analog-to-digital converter (ADC) with a sampling rate of 3 MSPS, designed for compact, high-speed applications.
- Q: What is the resolution of this ADC?
- A: The LTC2366CTS8#TRMPBF offers 12-bit resolution, providing good accuracy for a wide range of signal conversion tasks.
- Q: What is the sampling rate?
- A: It features a sampling rate of 3M SPS (samples per second), suitable for moderate-speed data acquisition.
- Q: How many channels does it have?
- A: This ADC has a single (1) input channel, ideal for dedicated signal monitoring.
- Q: What interface does it use?
- A: It uses an SPI (Serial Peripheral Interface), which simplifies connection to microcontrollers and digital systems.
- Q: What is the package type?
- A: The LTC2366CTS8#TRMPBF comes in a compact SOT-23-8 Thin, TSOT-23-8 package, perfect for space-limited designs.
