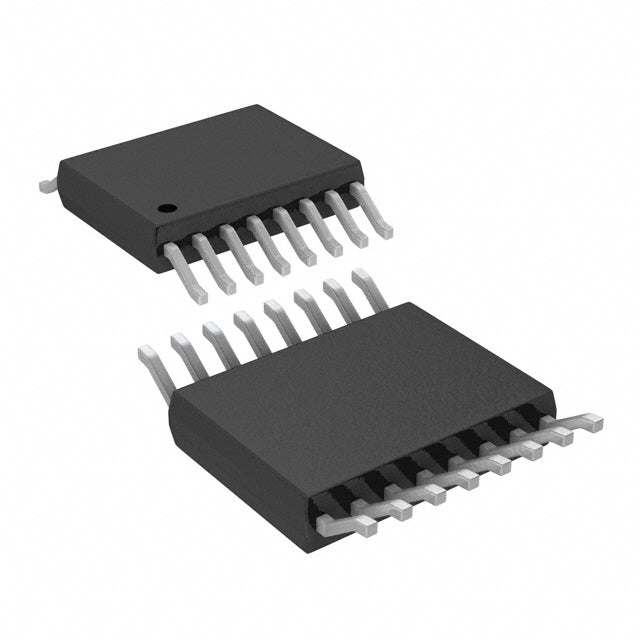

Analog Devices Inc. LTC2368CMS-24#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $54.37 | $54.37 |
| 15+ | $52.65 | $789.75 |
| 25+ | $51.51 | $1,287.75 |
| 50+ | $48.65 | $2,432.50 |
| 100+ | $42.92 | $4,292.00 |
| N+ | $8.58 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 24 |
| Sampling Rate (Per Second) | 1M |
| Number of Inputs | 1 |
| Input Type | Pseudo-Differential |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 2.375V ~ 2.625V |
| Voltage - Supply, Digital | 2.375V ~ 2.625V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 16-TFSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 16-MSOP |
| ROHS |  |
The LTC2368CMS-24#PBF from Analog Devices is a high-precision 24-bit analog-to-digital converter (ADC) designed for demanding measurement applications. It offers a sampling rate of 1 MSPS and a single input channel, ensuring accurate and reliable signal conversion. The device utilizes an SPI interface for easy integration with microcontrollers and operates over a temperature range of 0°C to +70°C. Its S/H-ADC architecture and compact 16-TFSOP package make it suitable for high-precision measurement, medical instrumentation, and industrial process control.
- Ultra-High Resolution: 24-bit resolution provides exceptional precision for the most demanding measurement applications.
- SPI Interface: Easy integration with standard microcontrollers and digital systems.
- 1 MSPS Sampling Rate: Provides sufficient speed for real-time measurement and control applications.
- External Reference: Allows for precise reference voltage selection, optimizing performance for specific applications.
- Compact Package: The 16-TFSOP package saves board space, enabling high-density designs.
High-Precision Measurement
The LTC2368's 24-bit resolution makes it ideal for high-precision measurement applications, such as weigh scales and pressure sensors.
Seismic Monitoring
In geophysical and seismic monitoring, this ADC provides the high resolution needed to detect subtle ground movements and vibrations.
Medical Instrumentation
For medical devices like EEG and ECG, the LTC2368 ensures accurate digitization of bio-signals, improving diagnostic capabilities.
Industrial Process Control
With its high resolution and SPI interface, this ADC is perfect for industrial automation, enabling precise control of chemical and manufacturing processes.
Environmental Monitoring
For environmental sensors measuring temperature, humidity, and gas concentration, the LTC2368 provides the precision needed for accurate data logging.
Audio and Vibration Analysis
The high resolution and sampling rate make this ADC suitable for high-fidelity audio recording and vibration analysis in industrial machinery.
- Q: What is the resolution of the LTC2368CMS-24#PBF?
- A: The LTC2368CMS-24#PBF is a 24-bit analog-to-digital converter (ADC).
- Q: What is the sampling rate of this ADC?
- A: It features a sampling rate of 1 MSPS (1 million samples per second).
- Q: How many input channels does the LTC2368 have?
- A: This ADC has a single input channel (1 channel).
- Q: What interface does the LTC2368CMS-24#PBF use?
- A: It uses an SPI (Serial Peripheral Interface) for data transfer.
- Q: What is the architecture of this ADC?
- A: The LTC2368 uses a S/H-ADC (Sample and Hold) architecture.
- Q: What is the package type for the LTC2368CMS-24#PBF?
- A: It is available in a 16-TFSOP (0.118", 3.00mm Width) package.
