Analog Devices Inc. LTC2376IDE-16#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $13.69 | $13.69 |
| 15+ | $13.26 | $198.90 |
| 25+ | $12.97 | $324.25 |
| 50+ | $12.25 | $612.50 |
| 100+ | $10.81 | $1,081.00 |
| N+ | $2.16 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 250k |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 2.375V ~ 2.625V |
| Voltage - Supply, Digital | 2.375V ~ 2.625V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |

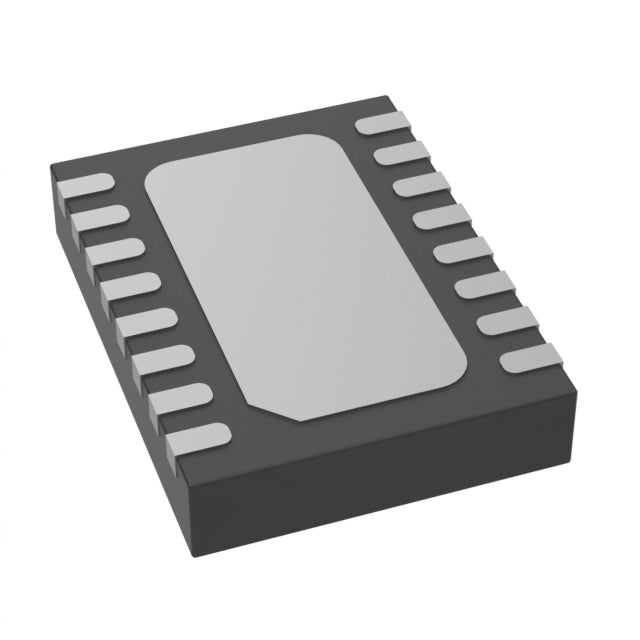

| Package / Case | 16-WFDFN Exposed Pad |
| Supplier Device Package | 16-DFN (4x3) |
| ROHS |  |
The LTC2376IDE-16#PBF is a precision 16-bit analog-to-digital converter from Analog Devices, offering a sampling rate of 250 kSPS. It features a single input channel with a sample-and-hold architecture and a convenient SPI interface for easy digital communication. This ADC requires an external reference, allowing designers to optimize performance for their specific application. Housed in a compact 16-WFDFN package, it operates over -40°C to 85°C, making it ideal for precision measurement, medical, and industrial applications.
- High Resolution: 16-bit accuracy for precise signal measurement.
- SPI Interface: Easy integration with standard digital systems.
- Low Power: Suitable for battery-powered devices.
- Small Footprint: 16-WFDFN package saves PCB space.
- Wide Temperature Range: Reliable in industrial environments.
Precision Sensor Digitization
The 16-bit resolution and 250 kSPS rate are ideal for accurately converting sensor outputs in industrial and laboratory settings.
Data Acquisition Systems
Its SPI interface simplifies integration with microcontrollers for multi-channel data logging systems.
Medical Instrumentation
High resolution supports precise measurements in patient monitoring and diagnostic equipment.
Automotive Sensors
The wide temperature range and accuracy make it suitable for automotive pressure and temperature sensing.
Portable Instrumentation
Low power consumption and small package enable battery-powered measurement devices.
Industrial Process Control
Reliable conversion of analog signals in PLCs and process controllers.
- Q: What is the resolution of the LTC2376IDE-16#PBF?
- A: It is a 16-bit analog-to-digital converter.
- Q: What is the sampling rate?
- A: It samples at 250 kSPS (250k samples per second).
- Q: What interface does it use?
- A: It uses a serial SPI interface.
- Q: How many channels does it have?
- A: It has a single (1) input channel.
- Q: What is the architecture?
- A: It uses a sample-and-hold (S/H) architecture.
- Q: What is the package type?
- A: It is available in a 16-WFDFN Exposed Pad package.
