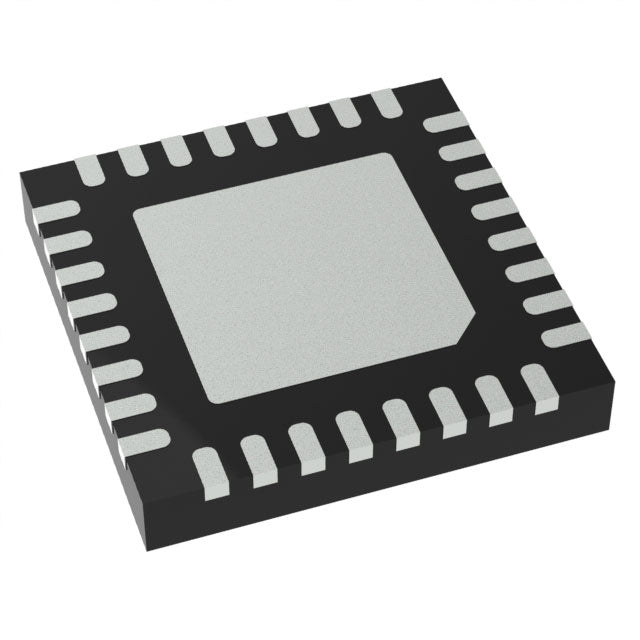

Analog Devices Inc. LTC2387IUH-18#TRPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $60.82 | $60.82 |
| 15+ | $58.90 | $883.50 |
| 25+ | $57.62 | $1,440.50 |
| 50+ | $54.42 | $2,721.00 |
| 100+ | $48.02 | $4,802.00 |
| N+ | $9.60 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Number of Bits | 18 |
| Sampling Rate (Per Second) | 15M |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | LVDS - Serial |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 2.375V ~ 2.625V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 32-WFQFN Exposed Pad |
| Supplier Device Package | 32-QFN (5x5) |
| ROHS |  |
The LTC2387IUH-18#TRPBF is an 18-bit analog-to-digital converter from Analog Devices, featuring a 15 MSPS sampling rate. It offers a single channel with an LVDS serial interface for noise-immune data transfer. The S/H architecture ensures precise conversion. Operating from -40°C to 85°C, it is packaged in a 32-WFQFN exposed pad, making it ideal for high-precision industrial, medical, and scientific applications.
- Ultra-High Resolution: 18-bit accuracy for the most demanding measurements.
- Fast Sampling: 15 MSPS balances speed and precision.
- LVDS Interface: Reduces digital noise and supports high-speed data transfer.
- Internal Reference: Simplifies circuit design and improves stability.
- Compact Package: 32-WFQFN with exposed pad for efficient thermal management.
High-Resolution Data Acquisition
18-bit resolution at 15 MSPS provides exceptional accuracy for precision measurement systems.
Vibration Monitoring
Captures fine details in vibration signatures for predictive maintenance in industrial machinery.
Medical Diagnostics
High dynamic range supports advanced imaging and biosignal analysis.
Scientific Research
Used in spectroscopy and particle physics experiments requiring extreme precision.
Aerospace Instrumentation
Reliable performance in harsh environments for flight test data recording.
Audio Test Equipment
High resolution enables accurate characterization of high-end audio components.
- Q: What is the resolution of the LTC2387IUH-18#TRPBF?
- A: It is an 18-bit analog-to-digital converter.
- Q: What is the sampling rate?
- A: The sampling rate is 15 MSPS (15M samples per second).
- Q: How many channels does it have?
- A: It has a single input channel.
- Q: What interface does it use?
- A: It uses an LVDS serial interface.
- Q: What is the architecture?
- A: It uses a sample-and-hold (S/H) ADC architecture.
- Q: What package is available?
- A: It is available in a 32-WFQFN exposed pad package.
