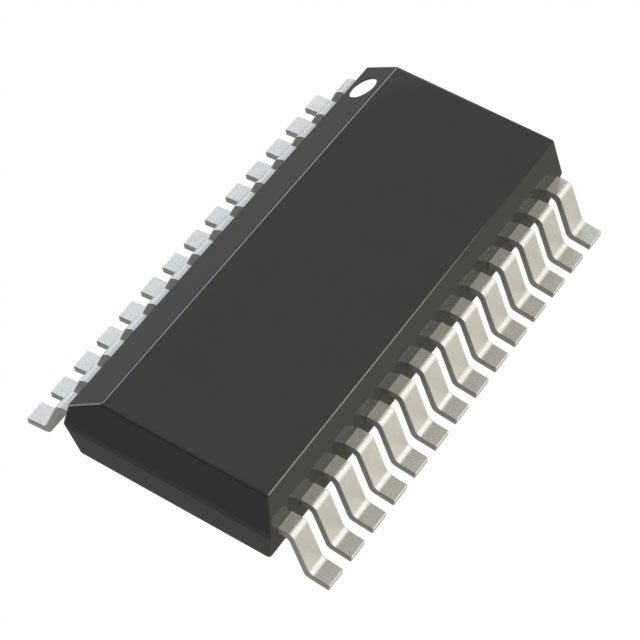

Analog Devices Inc. LTC2418CGN#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $18.93 | $18.93 |
| 15+ | $18.34 | $275.10 |
| 25+ | $17.94 | $448.50 |
| 50+ | $16.94 | $847.00 |
| 100+ | $14.95 | $1,495.00 |
| N+ | $2.99 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | microPOWER™ |
| Packaging | Tube | |
| Number of Bits | 24 |
| Sampling Rate (Per Second) | 7.5 |
| Number of Inputs | 8, 16 |
| Input Type | Differential, Single Ended |
| Data Interface | SPI |
| Configuration | MUX-ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 28-SSOP |
| ROHS |  |
The LTC2418CGN#PBF is a 24-bit, 8/16-channel analog-to-digital converter from Analog Devices. It offers a slow but highly accurate sampling rate of 7.5 SPS, making it ideal for precision measurement applications. The device uses a MUX-ADC architecture with an external reference, ensuring high accuracy and stability. Its SPI interface simplifies integration with digital systems. Housed in a 28-SSOP package, this ADC is designed for industrial, medical, and environmental monitoring applications where precision is paramount.
- Exceptional Precision: 24-bit resolution provides extremely fine measurement granularity for demanding sensor applications.
- High Input Flexibility: Supports 8 or 16 channels, allowing for expansion in multi-sensor systems.
- Simple Integration: Standard SPI interface ensures easy connection to microcontrollers and digital signal processors.
- Stable Performance: External reference input allows for precise and stable voltage references, improving overall accuracy.
High-Precision Sensor Measurement
The 24-bit resolution and 7.5 SPS sampling rate make the LTC2418CGN#PBF perfect for weighing scales, strain gauge bridges, and other precision sensors requiring extremely fine measurement resolution.
Data Acquisition for Environmental Monitoring
With 16 input channels, this ADC can monitor multiple environmental sensors (temperature, humidity, pressure) simultaneously, making it ideal for weather stations and climate control systems.
Medical Instrumentation
The high accuracy and low noise performance are critical for medical devices like patient monitoring systems and laboratory analytical instruments.
Industrial Process Automation
The 8/16-channel multiplexer allows for efficient monitoring of multiple process variables in industrial control systems, ensuring precise regulation of manufacturing processes.
Battery-Powered Instruments
The low power consumption and SPI interface make it suitable for portable, battery-operated data loggers and field instruments.
- Q: What is the resolution of the LTC2418CGN#PBF?
- A: It is a 24-bit, high-precision analog-to-digital converter.
- Q: What is the sampling rate of this ADC?
- A: The LTC2418CGN#PBF has a sampling rate of 7.5 SPS.
- Q: How many input channels does it support?
- A: It supports 8 or 16 input channels, configurable via the serial interface.
- Q: What digital interface does this device use?
- A: It uses a standard SPI serial interface.
- Q: What is the architecture of the LTC2418CGN#PBF?
- A: It uses a MUX-ADC architecture with a delta-sigma converter core.
- Q: What is the package type?
- A: It comes in a 28-SSOP (0.154", 3.90mm Width) package.
