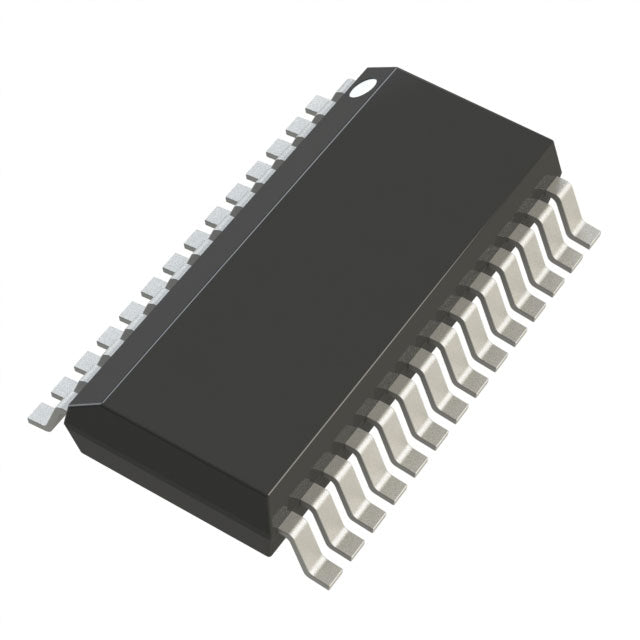

Analog Devices Inc. LTC2418IGN#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $20.47 | $20.47 |
| 15+ | $19.83 | $297.45 |
| 25+ | $19.40 | $485.00 |
| 50+ | $18.32 | $916.00 |
| 100+ | $16.16 | $1,616.00 |
| N+ | $3.23 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | microPOWER™ |
| Packaging | Tube | |
| Number of Bits | 24 |
| Sampling Rate (Per Second) | 7.5 |
| Number of Inputs | 8, 16 |
| Input Type | Differential, Single Ended |
| Data Interface | SPI |
| Configuration | MUX-ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 28-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 28-SSOP |
| ROHS |  |
The LTC2418IGN#PBF is a 24-bit ADC from Analog Devices, featuring a multiplexed 8/16-channel input and a low sampling rate of 7.5 SPS. It uses a MUX-ADC architecture with SPI interface and requires an external reference. Packaged in a 28-SSOP, this converter is designed for ultra-high-precision, low-speed applications such as weigh scales, temperature monitoring, and environmental data acquisition.
- Ultra-High 24-Bit Resolution: Provides exceptional accuracy for demanding measurement applications.
- 16-Channel Multiplexing: Monitors multiple sensors with a single ADC, reducing system cost.
- Low Noise Performance: The 7.5 SPS rate enables deep noise averaging for stable readings.
- Wide Temperature Range: -40°C to +85°C ensures reliable operation in industrial settings.
Precision Weigh Scales
The 24-bit resolution and 7.5 SPS rate are ideal for high-accuracy load cell measurements, resolving microvolt-level changes in bridge sensors.
Temperature Measurement
With 16 multiplexed channels, it can monitor multiple thermocouples or RTDs in industrial ovens or HVAC systems, providing 24-bit temperature linearization.
Data Acquisition for Environmental Sensors
For weather stations or soil monitoring, the LTC2418IGN#PBF digitizes slow-changing signals from humidity, pressure, and light sensors with exceptional precision.
Battery Monitoring Systems
In battery management, it measures cell voltages and temperatures across 16 channels, enabling accurate state-of-charge estimation.
Laboratory Instruments
The SPI interface and high resolution make it suitable for precision voltage/current sources and nanovoltmeters used in research labs.
- Q: What is the LTC2418IGN#PBF ADC type?
- A: It is a 24-bit analog-to-digital converter with a multiplexed input (MUX-ADC) architecture.
- Q: What is the resolution?
- A: The resolution is 24 bits, offering 16.7 million output codes for ultra-high precision.
- Q: What is the sampling rate?
- A: It has a sampling rate of 7.5 SPS (samples per second), optimized for low-speed, high-accuracy measurements.
- Q: How many channels are available?
- A: It provides 8 or 16 input channels (selectable).
- Q: What interface does it use?
- A: It communicates via the SPI (Serial Peripheral Interface).
- Q: What is the package type?
- A: It is available in a 28-SSOP (0.154", 3.90mm Width) package.
