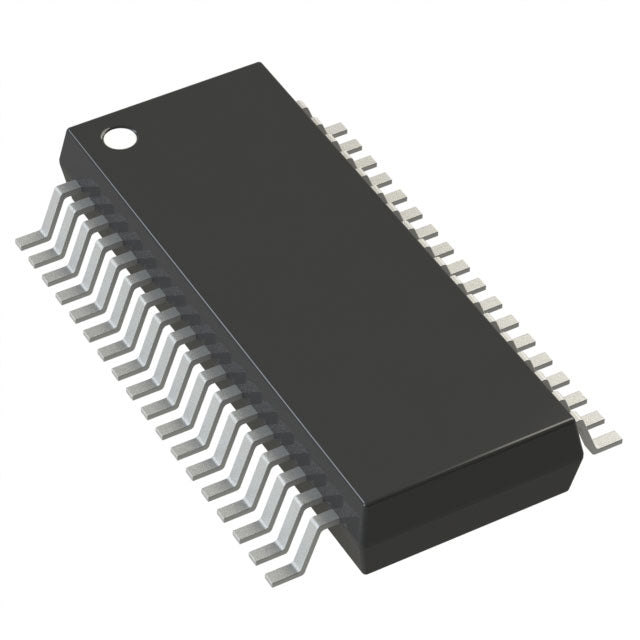

Analog Devices Inc. LTC2442CG#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $18.55 | $18.55 |
| 15+ | $17.97 | $269.55 |
| 25+ | $17.58 | $439.50 |
| 50+ | $16.60 | $830.00 |
| 100+ | $14.65 | $1,465.00 |
| N+ | $2.93 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 24 |
| Sampling Rate (Per Second) | 8k |
| Number of Inputs | 2, 4 |
| Input Type | Differential, Single Ended |
| Data Interface | SPI |
| Configuration | MUX-ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | External |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 36-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 36-SSOP |
| ROHS |  |
The LTC2442CG#PBF from Analog Devices is a high-resolution 24-bit analog-to-digital converter designed for precision measurement applications. It features a configurable multiplexer for 2 or 4 input channels, allowing for flexible signal routing. With a sampling rate of 8k SPS, it is optimized for high-accuracy, low-speed applications. The device uses an external reference and communicates via a simple SPI interface. Housed in a 36-SSOP package, the LTC2442CG#PBF is suitable for industrial, medical, and instrumentation systems where accuracy is paramount.
- Exceptional Resolution: 24-bit resolution provides outstanding accuracy and dynamic range for the most demanding measurement tasks.
- Multiplexed Inputs: Supports 2 or 4 channels, reducing component count and simplifying multi-sensor systems.
- High Accuracy: Ideal for precision applications like weigh scales and temperature measurement where small signal variations must be detected.
- Simple Integration: The SPI interface ensures easy connection to standard digital controllers.
Weigh Scale and Strain Gauge Systems
The 24-bit resolution of the LTC2442CG#PBF provides the high dynamic range required for precise weight measurement and strain gauge signal conditioning, ensuring accurate readings.
High-Resolution Data Acquisition
With its multiplexed inputs and SPI interface, this ADC is perfect for multi-channel data acquisition systems that require high accuracy, such as laboratory instruments and environmental monitors.
Temperature Measurement
Its high resolution allows for extremely fine temperature resolution when used with thermocouples or RTDs, making it suitable for precision temperature control and monitoring.
Industrial Process Control
The device's ability to handle multiple channels and its high precision make it suitable for industrial automation where accurate monitoring of several process variables is essential.
Medical Instrumentation
In medical devices like patient monitoring systems, the LTC2442CG#PBF ensures accurate conversion of biological signals, which is critical for reliable diagnostics.
- Q: What is the LTC2442CG#PBF?
- A: It is a 24-bit, high-precision analog-to-digital converter (ADC) with a multiplexed input (MUX-ADC) architecture.
- Q: What is the resolution of the LTC2442CG#PBF?
- A: It offers a very high resolution of 24 bits, ideal for demanding measurement applications.
- Q: What is the sampling rate of the LTC2442CG#PBF?
- A: The LTC2442CG#PBF has a sampling rate of 8k SPS (samples per second).
- Q: How many channels does it have?
- A: It features a multiplexer that supports 2 or 4 input channels, configurable based on application needs.
- Q: What interface does it use?
- A: It communicates via a standard SPI serial interface.
- Q: What is the package type?
- A: It is available in a 36-SSOP package and operates over a temperature range of 0°C to 70°C.
