Analog Devices Inc. LTC2445CUHF#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $17.90 | $17.90 |
| 15+ | $17.33 | $259.95 |
| 25+ | $16.96 | $424.00 |
| 50+ | $16.01 | $800.50 |
| 100+ | $14.13 | $1,413.00 |
| N+ | $2.83 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 24 |
| Sampling Rate (Per Second) | 8k |
| Number of Inputs | 4, 8 |
| Input Type | Differential, Single Ended |
| Data Interface | SPI |
| Configuration | MUX-ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | External |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |

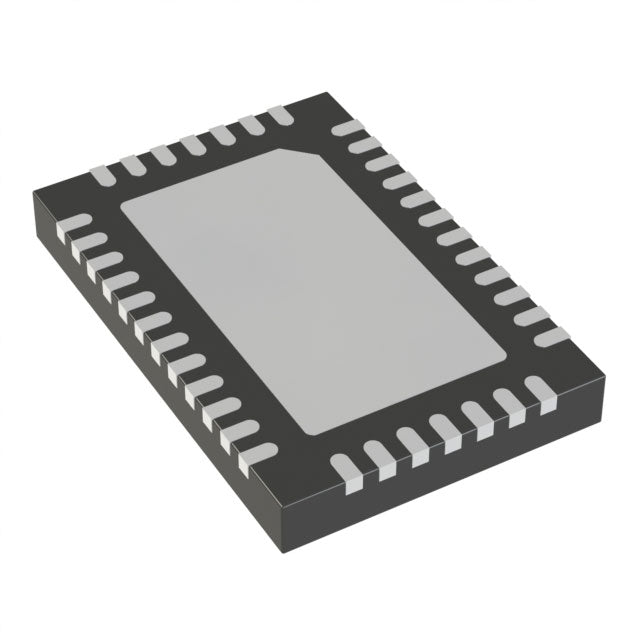

| Package / Case | 38-WFQFN Exposed Pad |
| Supplier Device Package | 38-QFN (5x7) |
| ROHS |  |
The LTC2445CUHF#PBF from Analog Devices is a 24-bit, high-speed delta-sigma ADC designed for precision measurement applications. It offers a sampling rate of 8k SPS and supports 4 or 8 multiplexed input channels. With its MUX-ADC architecture and external reference, this ADC delivers exceptional accuracy for medical, industrial, and scientific applications. The device features a SPI interface and is housed in a 38-WFQFN Exposed Pad package, operating over a 0°C to 70°C temperature range.
- 24-bit resolution provides exceptional accuracy for the most demanding measurement applications.
- 8k SPS sampling rate balances speed and precision for real-time data acquisition.
- 4/8-channel multiplexing enables compact multi-sensor designs without external switching.
- SPI interface simplifies integration with microcontrollers and digital signal processors.
High-Precision Data Acquisition
The LTC2445CUHF#PBF's 24-bit resolution and 8k SPS sampling rate enable high-precision data acquisition systems for laboratory instruments and scientific research, capturing fine signal details with excellent accuracy.
Multi-Sensor Measurement Systems
With 4 or 8 multiplexed channels, this ADC is perfect for multi-sensor measurement systems in environmental monitoring and industrial process control, allowing simultaneous monitoring of multiple parameters.
Medical Instrumentation
The high resolution and low noise performance make the LTC2445CUHF#PBF suitable for medical instrumentation such as ECG, EEG, and patient monitoring systems, where accurate signal capture is critical for diagnosis.
Weigh Scale and Force Measurement
The device's high resolution supports precise weight and force measurement in industrial scales and load cell applications, providing stable and repeatable readings over a 0°C to 70°C temperature range.
Portable Test Equipment
The compact 38-WFQFN package and SPI interface make the LTC2445CUHF#PBF ideal for portable test equipment, enabling high-accuracy measurements in handheld devices.
- Q: What is the LTC2445CUHF#PBF ADC type?
- A: The LTC2445CUHF#PBF is a 24-bit, high-speed delta-sigma analog-to-digital converter with a MUX-ADC architecture.
- Q: What is the resolution of the LTC2445CUHF#PBF?
- A: The LTC2445CUHF#PBF provides 24-bit resolution.
- Q: What is the sampling rate of the LTC2445CUHF#PBF?
- A: The LTC2445CUHF#PBF has a sampling rate of 8k SPS.
- Q: How many channels does the LTC2445CUHF#PBF have?
- A: The LTC2445CUHF#PBF supports 4 or 8 input channels.
- Q: What interface does the LTC2445CUHF#PBF use?
- A: The LTC2445CUHF#PBF uses a SPI serial interface.
- Q: What is the package type of the LTC2445CUHF#PBF?
- A: The LTC2445CUHF#PBF comes in a 38-WFQFN Exposed Pad package.
