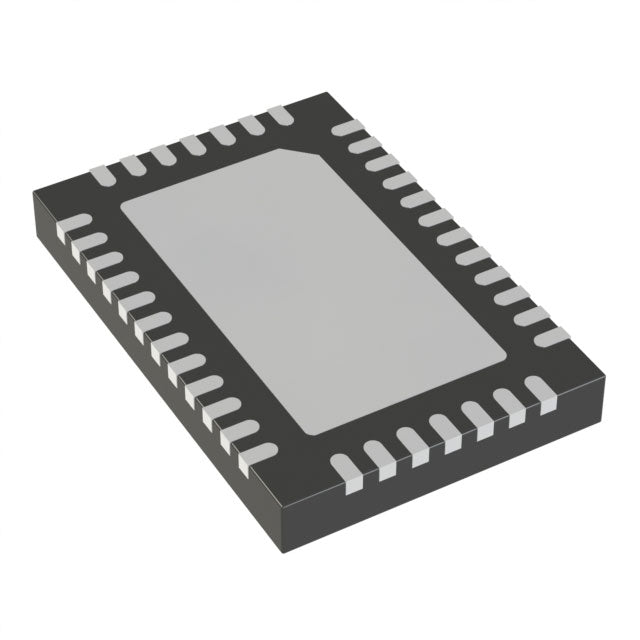

Analog Devices Inc. LTC2447CUHF#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $19.35 | $19.35 |
| 15+ | $18.74 | $281.10 |
| 25+ | $18.33 | $458.25 |
| 50+ | $17.31 | $865.50 |
| 100+ | $15.28 | $1,528.00 |
| N+ | $3.06 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 24 |
| Sampling Rate (Per Second) | 8k |
| Number of Inputs | 4, 8 |
| Input Type | Differential, Single Ended |
| Data Interface | SPI |
| Configuration | MUX-ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | External |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 38-WFQFN Exposed Pad |
| Supplier Device Package | 38-QFN (5x7) |
| ROHS |  |
The LTC2447CUHF#PBF is a 24-bit analog-to-digital converter from Analog Devices, tailored for precision multi-channel measurement. It offers a sampling rate of 8k SPS and supports 4 or 8 multiplexed inputs, allowing efficient monitoring of multiple sensors. The MUX-ADC architecture integrates channel selection, reducing external circuitry. With an SPI interface and external reference, it provides design flexibility and accuracy. Operating from 0°C to 70°C, it is suitable for commercial and industrial applications. The compact 38-WFQFN package with exposed pad enhances thermal performance and saves board space.
- High Precision: 24-bit resolution delivers exceptional accuracy for critical measurements.
- Flexible Channel Configuration: 4 or 8 channels adapt to different system needs without redesign.
- Integrated MUX: Simplifies PCB layout and reduces component count, lowering cost.
- SPI Compatibility: Easy integration with standard digital interfaces, accelerating development.
- Compact Footprint: 38-WFQFN package is ideal for space-constrained designs.
High-Precision Industrial Weighing
The 24-bit resolution ensures accurate weight measurement in dosing and filling machines, improving product consistency.
Multi-Channel Temperature Monitoring
With 8 channels, it can read multiple RTDs or thermistors, making it ideal for HVAC control and environmental chambers.
Portable Analytical Instruments
Low power consumption and high precision support battery-operated pH meters and conductivity meters.
Automotive Test Systems
In engine test benches, the ADC digitizes pressure and torque signals with high fidelity for performance analysis.
Laboratory Data Loggers
The SPI interface and multiplexed inputs enable compact data loggers for long-term scientific experiments.
Process Control Transmitters
4-20mA loop-powered transmitters benefit from the high resolution to accurately digitize sensor signals for industrial automation.
- Q: What is the LTC2447CUHF#PBF resolution?
- A: It is a 24-bit ADC, offering high-resolution conversion for precision analog signals.
- Q: What is the sampling rate?
- A: The device samples at 8k SPS, suitable for accurate, low-speed measurements.
- Q: How many input channels are available?
- A: It supports 4 or 8 multiplexed channels, providing flexibility for various sensor configurations.
- Q: What interface does it use?
- A: It uses an SPI interface for digital communication with microcontrollers.
- Q: What is the architecture?
- A: The architecture is MUX-ADC, integrating a multiplexer with the converter core.
- Q: What is the temperature range?
- A: It operates from 0°C to 70°C and comes in a 38-WFQFN exposed pad package.
