Analog Devices Inc. LTC2447IUHF#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $21.57 | $21.57 |
| 15+ | $20.89 | $313.35 |
| 25+ | $20.44 | $511.00 |
| 50+ | $19.30 | $965.00 |
| 100+ | $17.03 | $1,703.00 |
| N+ | $3.41 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 24 |
| Sampling Rate (Per Second) | 8k |
| Number of Inputs | 4, 8 |
| Input Type | Differential, Single Ended |
| Data Interface | SPI |
| Configuration | MUX-ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | External |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |

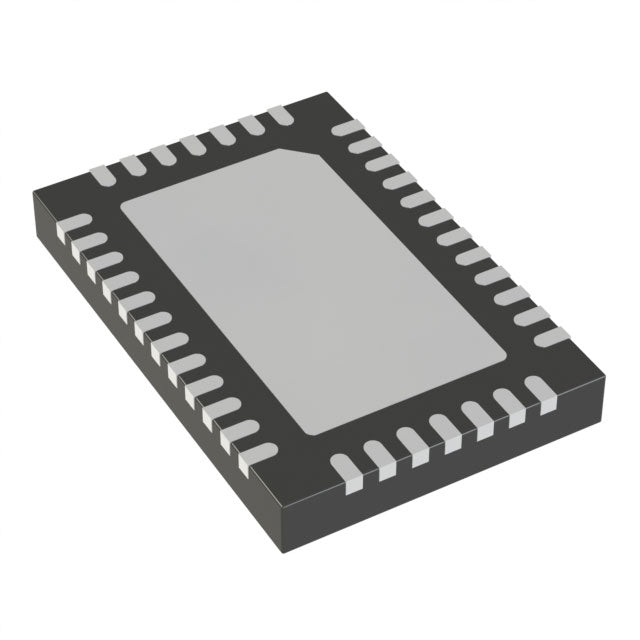

| Package / Case | 38-WFQFN Exposed Pad |
| Supplier Device Package | 38-QFN (5x7) |
| ROHS |  |
The LTC2447IUHF#PBF is a 24-bit analog-to-digital converter featuring a 4/8-channel multiplexer and an SPI interface. With a sampling rate of 8k SPS, it provides accurate and stable conversions for multi-channel applications. The external reference input allows for flexible voltage scaling. This ADC from Analog Devices is well-suited for precision industrial instrumentation, data acquisition systems, and environmental monitoring, all within a compact 38-WFQFN package.
- High Precision: 24-bit resolution ensures accurate representation of analog signals.
- Multi-Channel Flexibility: 4 or 8 input channels allow for monitoring multiple signals with one device.
- Easy Integration: Standard SPI interface simplifies connection to digital systems.
- Robust Design: Industrial temperature range and exposed pad package for reliable thermal performance.
Precision Data Logging
The LTC2447IUHF#PBF's 24-bit resolution and 8k SPS rate make it perfect for high-accuracy data loggers that record slow-changing signals like temperature and humidity.
Industrial Automation and Control
With 4/8 multiplexed inputs, this ADC can monitor multiple analog sensors in an industrial setting, such as position and level sensors, for precise automated control.
Test and Measurement Equipment
Its high resolution and SPI interface make it suitable for benchtop multimeters and precision measurement instruments where accuracy is paramount.
Energy Monitoring Systems
The ADC can be used to digitize voltage and current signals from power transducers, enabling accurate energy metering and power quality analysis.
Environmental Monitoring Stations
Ideal for remote weather stations, the LTC2447 can accurately digitize signals from various environmental sensors, ensuring reliable long-term data collection.
- Q: What is the LTC2447IUHF#PBF?
- A: It is a 24-bit, 8k SPS, MUX-ADC from Analog Devices with an external reference, designed for high-precision multi-channel applications.
- Q: What is the resolution of this ADC?
- A: It offers 24-bit resolution, providing high accuracy for demanding measurement tasks.
- Q: What is the sampling rate?
- A: The sampling rate is 8k SPS, suitable for precise, low-speed data acquisition.
- Q: How many channels does it have?
- A: It features 4 or 8 multiplexed input channels, configurable via the SPI interface.
- Q: What is the package type?
- A: It is available in a 38-WFQFN Exposed Pad package.
- Q: What is the temperature range?
- A: It operates from -40°C to 85°C.
