Analog Devices Inc. LTC2448CUHF#TRPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $19.35 | $19.35 |
| 15+ | $18.74 | $281.10 |
| 25+ | $18.33 | $458.25 |
| 50+ | $17.31 | $865.50 |
| 100+ | $15.28 | $1,528.00 |
| N+ | $3.06 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Number of Bits | 24 |
| Sampling Rate (Per Second) | 8k |
| Number of Inputs | 8, 16 |
| Input Type | Differential, Single Ended |
| Data Interface | SPI |
| Configuration | MUX-ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | External |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |

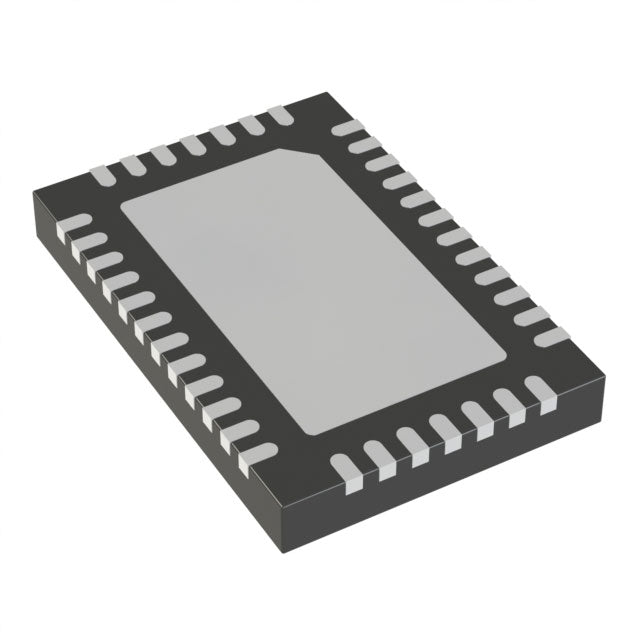

| Package / Case | 38-WFQFN Exposed Pad |
| Supplier Device Package | 38-QFN (5x7) |
| ROHS |  |
The LTC2448CUHF#TRPBF is a 24-bit analog-to-digital converter from Analog Devices, designed for precision measurement applications. It features a sampling rate of 8k SPS and supports up to 16 multiplexed input channels, making it ideal for multi-sensor systems. The MUX-ADC architecture integrates channel selection and conversion in a single device, simplifying design. With an SPI interface and external reference support, it offers flexibility and accuracy. Operating from 0°C to 70°C, it is suited for commercial and industrial environments. The 38-WFQFN exposed pad package ensures compact integration and thermal performance.
- Exceptional Resolution: 24-bit output provides high precision, essential for demanding measurement applications.
- Multi-Channel Flexibility: 8 or 16 channel options allow monitoring of numerous sensors without extra hardware.
- Integrated Multiplexer: Reduces external components, saving board space and improving reliability.
- SPI Interface: Simple digital communication with standard controllers, easing firmware development.
- Low Sampling Rate Optimized: 8k SPS balances speed and noise performance for precision applications.
Precision Weigh Scales
The 24-bit resolution and 8k SPS sampling rate enable accurate weight measurement in industrial and laboratory scales, detecting minute changes in load.
Temperature and Pressure Sensing
With 16 channels, this ADC can monitor multiple thermocouples or strain gauges simultaneously, ideal for environmental monitoring systems.
Data Acquisition for Scientific Instruments
High resolution ensures faithful digitization of low-amplitude signals in spectrometers and chromatographs, preserving measurement integrity.
Industrial Process Control
The MUX-ADC architecture simplifies wiring in process control systems, allowing one converter to handle multiple analog loops with high accuracy.
Medical Diagnostic Equipment
In devices like blood analyzers, the 24-bit precision helps detect small biological variations, improving diagnostic accuracy.
Energy Harvesting Systems
Low-speed, high-resolution conversion is perfect for monitoring micro-power generation, capturing tiny voltage and current changes.
- Q: What is the resolution of the LTC2448CUHF#TRPBF?
- A: It is a 24-bit high-precision ADC, providing extremely fine digital representation of analog signals.
- Q: What is the sampling rate?
- A: The sampling rate is 8k SPS (samples per second), optimized for high-accuracy, low-speed measurements.
- Q: How many channels does it support?
- A: It supports 8 or 16 multiplexed input channels, allowing multiple sensor connections.
- Q: What interface does this ADC use?
- A: It uses a serial SPI interface for communication with host processors.
- Q: What is the architecture?
- A: The architecture is MUX-ADC, with an integrated multiplexer feeding directly into the converter.
- Q: What is the operating temperature range?
- A: It operates from 0°C to 70°C and is available in a 38-WFQFN exposed pad package.
