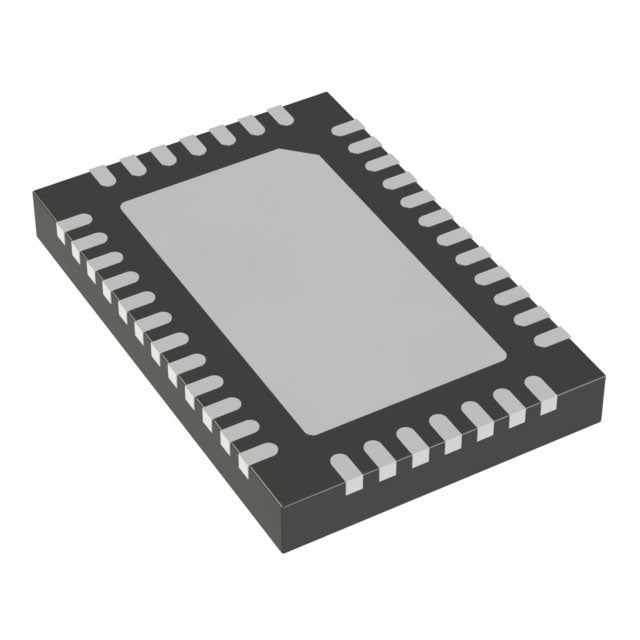

Analog Devices Inc. LTC2449CUHF#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $19.35 | $19.35 |
| 15+ | $18.74 | $281.10 |
| 25+ | $18.33 | $458.25 |
| 50+ | $17.31 | $865.50 |
| 100+ | $15.28 | $1,528.00 |
| N+ | $3.06 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 24 |
| Sampling Rate (Per Second) | 8k |
| Number of Inputs | 8, 16 |
| Input Type | Differential, Single Ended |
| Data Interface | SPI |
| Configuration | MUX-ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | External |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 38-WFQFN Exposed Pad |
| Supplier Device Package | 38-QFN (5x7) |
| ROHS |  |
The LTC2449CUHF#PBF from Analog Devices is a 24-bit, delta-sigma analog-to-digital converter (ADC) featuring an integrated multiplexer for up to 16 input channels. It achieves a sampling rate of 8k SPS, balancing speed and precision. The device communicates via an SPI interface and is packaged in a compact 38-WFQFN package with an exposed pad for thermal management. It operates over a temperature range of 0°C to +70°C. This ADC is well-suited for multi-channel data acquisition, industrial measurement, and automated test equipment.
- High Channel Count: Supports up to 16 input channels, enabling monitoring of many sensors with a single ADC.
- Excellent Precision: 24-bit resolution ensures accurate measurement of small signal variations.
- Fast Sampling Rate: 8k SPS allows for higher throughput in dynamic measurement applications.
- Compact Package: The 38-WFQFN package with exposed pad saves board space and improves thermal performance.
High-Channel-Count Data Acquisition
The LTC2449CUHF#PBF with its 16 input channels and 24-bit resolution is perfect for large-scale data acquisition systems, such as structural health monitoring and multi-sensor arrays.
Precision Industrial Measurement
With an 8k SPS sampling rate and high accuracy, this ADC is suitable for industrial measurement applications like torque transducers and pressure sensors.
Automated Test Equipment (ATE)
The fast sampling rate and multiplexed inputs make it ideal for ATE systems that need to quickly and accurately measure multiple test points.
Medical Imaging Systems
In medical devices like ultrasound or MRI systems, the LTC2449CUHF#PBF can digitize multiple analog signals with high precision, improving image quality.
Energy Monitoring
Use this ADC to monitor voltage and current from multiple phases in power distribution systems, enabling accurate energy metering and power quality analysis.
- Q: What type of ADC is the LTC2449CUHF#PBF?
- A: It is a 24-bit, high-speed delta-sigma analog-to-digital converter with an integrated multiplexer (MUX-ADC).
- Q: What is the resolution of this ADC?
- A: It offers a 24-bit resolution, providing excellent precision for measurement applications.
- Q: What is the maximum sampling rate?
- A: The LTC2449CUHF#PBF supports a sampling rate of 8k SPS (samples per second).
- Q: How many input channels are available?
- A: It provides 8 or 16 input channels, configurable for single-ended or differential inputs.
- Q: What digital interface does it use?
- A: It uses an SPI (Serial Peripheral Interface) for communication with a host controller.
- Q: What is the operating temperature range?
- A: This device operates over a commercial temperature range of 0°C to +70°C.
