Analog Devices Inc. LTC2449CUHF#TRPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $19.35 | $19.35 |
| 15+ | $18.74 | $281.10 |
| 25+ | $18.33 | $458.25 |
| 50+ | $17.31 | $865.50 |
| 100+ | $15.28 | $1,528.00 |
| N+ | $3.06 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Number of Bits | 24 |
| Sampling Rate (Per Second) | 8k |
| Number of Inputs | 8, 16 |
| Input Type | Differential, Single Ended |
| Data Interface | SPI |
| Configuration | MUX-ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | External |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 38-WFQFN Exposed Pad |
| Supplier Device Package | 38-QFN (5x7) |
| ROHS |  |

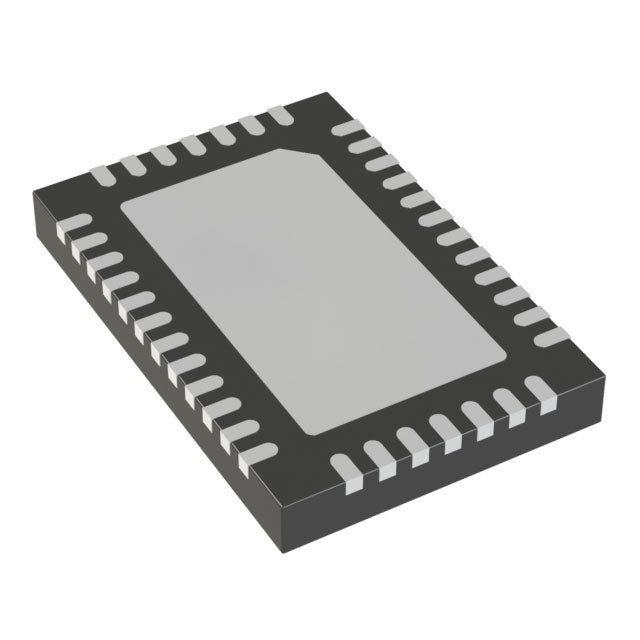

The LTC2449CUHF#TRPBF is a 24-bit, delta-sigma analog-to-digital converter (ADC) from Analog Devices. It features an integrated multiplexer supporting up to 16 input channels, making it ideal for multi-sensor applications. With a sampling rate of 8k SPS, it offers a good balance between speed and precision. The device uses an SPI interface and comes in a 38-WFQFN package with an exposed pad. It operates over a temperature range of 0°C to +70°C. This ADC is suitable for data acquisition, industrial monitoring, and medical instrumentation.
- Versatile Channel Configuration: Supports 8 or 16 channels, providing flexibility for various single-ended or differential signal routing.
- High Accuracy: 24-bit resolution delivers precise measurements, critical for instrumentation and control.
- Efficient Data Transfer: SPI interface ensures fast and reliable communication with microcontrollers.
- Space-Saving Design: The compact 38-WFQFN package is suitable for space-constrained designs.
Multi-Sensor Data Logging
The LTC2449CUHF#TRPBF with 16 channels and 24-bit resolution is ideal for data loggers that record multiple environmental or industrial parameters simultaneously.
Precision Weighing Systems
Its high resolution and multiplexed inputs allow for accurate measurement from multiple load cells in industrial scales and checkweighers.
Industrial Process Monitoring
With an 8k SPS sampling rate, this ADC can monitor fast-changing process variables like pressure and flow in real-time control systems.
Medical Diagnostic Equipment
The high precision and multi-channel capability make it suitable for diagnostic devices such as blood analyzers and vital sign monitors.
Test and Measurement Instruments
In bench-top multimeters or data acquisition units, the LTC2449CUHF#TRPBF provides the accuracy and channel density needed for versatile measurements.
- Q: What type of ADC is the LTC2449CUHF#TRPBF?
- A: It is a 24-bit, delta-sigma analog-to-digital converter with an integrated multiplexer (MUX-ADC).
- Q: What is the resolution of this ADC?
- A: It provides a 24-bit resolution for high-precision analog-to-digital conversion.
- Q: What is the maximum sampling rate?
- A: The LTC2449CUHF#TRPBF supports a sampling rate of 8k SPS (samples per second).
- Q: How many input channels does it have?
- A: It offers 8 or 16 input channels, configurable for single-ended or differential inputs.
- Q: What digital interface does it use?
- A: It uses an SPI (Serial Peripheral Interface) for communication.
- Q: What is the operating temperature range?
- A: This device operates over a commercial temperature range of 0°C to +70°C.
