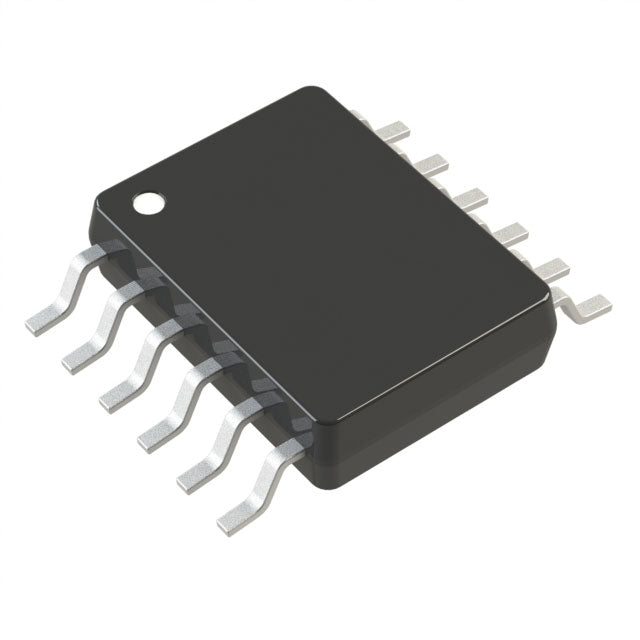

Analog Devices Inc. LTC2460IMS#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $6.75 | $6.75 |
| 15+ | $6.54 | $98.10 |
| 25+ | $6.40 | $160.00 |
| 50+ | $6.04 | $302.00 |
| 100+ | $5.33 | $533.00 |
| N+ | $1.07 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 60 |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 12-TSSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 12-MSOP |
| ROHS |  |
The LTC2460IMS#PBF is a 16-bit analog-to-digital converter from Analog Devices, offering high precision for low-speed measurement applications. It features a single input channel and a sampling rate of 60 SPS, making it ideal for accurate digitization of slow-changing signals. The device includes an internal reference and communicates via an SPI interface. It operates over a temperature range of -40°C to 85°C and is available in a compact 12-TSSOP package, suitable for precision instrumentation and portable devices.
- High Resolution: 16-bit resolution provides excellent accuracy for precision measurement applications.
- Internal Reference: Integrated reference simplifies design and reduces external component count.
- Low Power Consumption: Ideal for battery-powered and portable applications.
- SPI Interface: Standard serial interface ensures easy integration with microcontrollers.
Precision Sensor Measurement
The 16-bit resolution and 60 SPS rate are ideal for precise measurement of slow-changing signals from temperature, pressure, and strain sensors.
Weigh Scale Applications
Its high resolution and internal reference make it suitable for high-accuracy weigh scales and force measurement systems.
Data Logging
For battery-powered data loggers, the LTC2460's low power consumption and precision ensure accurate long-term recording of environmental data.
Instrumentation
It can be used in laboratory instruments like multimeters and precision voltage sources where accurate DC measurements are required.
Industrial Process Control
The device provides reliable digitization of analog control signals in industrial automation, ensuring stable and precise operation.
Medical Devices
Its precision and small package make it suitable for portable medical devices like glucose meters and digital thermometers.
- Q: What is the LTC2460IMS#PBF?
- A: It is a 16-bit analog-to-digital converter (ADC) from Analog Devices with an SPI interface.
- Q: What is the resolution?
- A: It provides a high 16-bit resolution.
- Q: What is the sampling rate?
- A: The sampling rate is 60 SPS (samples per second).
- Q: How many channels does it have?
- A: It has a single (1) input channel.
- Q: What interface does it use?
- A: It uses an SPI interface for communication.
- Q: What is the package type?
- A: It is available in a 12-TSSOP (0.118", 3.00mm Width) package.
