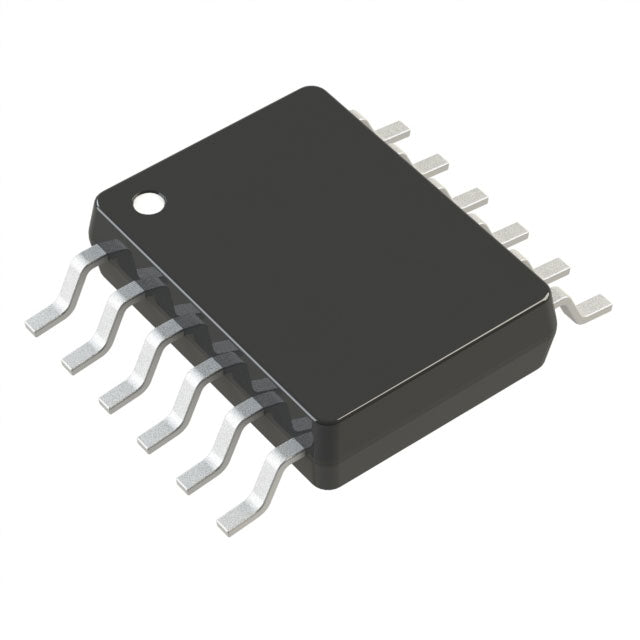

Analog Devices Inc. LTC2462IMS#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $6.75 | $6.75 |
| 15+ | $6.54 | $98.10 |
| 25+ | $6.40 | $160.00 |
| 50+ | $6.04 | $302.00 |
| 100+ | $5.33 | $533.00 |
| N+ | $1.07 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 60 |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | SPI |
| Configuration | ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 12-TSSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 12-MSOP |
| ROHS |  |
The LTC2462IMS#PBF is a 16-bit, single-channel analog-to-digital converter (ADC) from Analog Devices. It features an internal reference and a sampling rate of 60 SPS. The device uses an SPI interface for communication. This ADC is well-suited for precision measurement applications, including temperature sensing, portable instrumentation, and industrial automation, offering high accuracy in a compact 12-TSSOP package.
- High Resolution: 16-bit output provides exceptional detail in signal conversion, ideal for precision applications.
- Low Noise: The architecture ensures low noise performance, critical for accurate measurements in sensitive systems.
- Compact Size: The 12-TSSOP package is space-efficient, suitable for dense PCB layouts.
- Internal Reference: Eliminates the need for an external reference, simplifying design and reducing BOM cost.
Precision Temperature Measurement
The 16-bit resolution and 60 SPS sampling rate of the LTC2462IMS#PBF make it perfect for precision temperature measurement systems, such as thermocouple or RTD readers, where accuracy is paramount.
Portable Instrumentation
Its low power consumption and small 12-TSSOP package make it suitable for portable instruments like handheld multimeters and environmental data loggers.
Industrial Automation
In industrial automation, this ADC can be used to digitize analog signals from sensors in process control loops, ensuring accurate monitoring and control.
Laboratory Equipment
For laboratory equipment like precision power supplies or measurement benches, the LTC2462IMS#PBF provides the high accuracy needed for reliable test results.
Energy Monitoring
It can be used in energy monitoring systems to measure current and voltage with high precision, enabling accurate power consumption analysis.
- Q: What type of ADC is the LTC2462IMS#PBF?
- A: It is a 16-bit analog-to-digital converter (ADC) with an internal reference.
- Q: What is the resolution?
- A: The resolution is 16 bits, allowing for very fine measurement increments.
- Q: What is the sampling rate?
- A: It has a sampling rate of 60 SPS, ideal for low-frequency, high-accuracy signals.
- Q: How many channels are available?
- A: This ADC has 1 input channel.
- Q: What interface does it support?
- A: It supports the SPI (Serial Peripheral Interface) for high-speed data transfer to a host controller.
- Q: What is the package type?
- A: It is available in a 12-TSSOP (0.118", 3.00mm Width) package.
