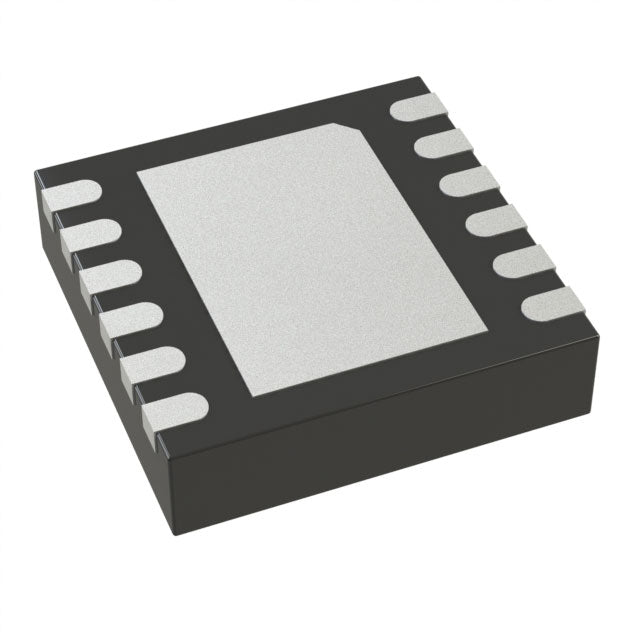

Analog Devices Inc. LTC2463IDD#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $6.75 | $6.75 |
| 15+ | $6.54 | $98.10 |
| 25+ | $6.40 | $160.00 |
| 50+ | $6.04 | $302.00 |
| 100+ | $5.33 | $533.00 |
| N+ | $1.07 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 60 |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | I2C |
| Configuration | ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Features | Selectable Address |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 12-WFDFN Exposed Pad |
| Supplier Device Package | 12-DFN (3x3) |
| ROHS |  |
The LTC2463IDD#PBF from Analog Devices is a 16-bit, single-channel analog-to-digital converter with a sampling rate of 60 SPS. It features an internal voltage reference, simplifying the design and reducing external component count. The device communicates via an I2C interface, making it easy to integrate into digital systems. Housed in a compact 12-WFDFN package, it is designed for precision measurement applications such as temperature sensing, battery monitoring, and industrial transmitters, offering excellent accuracy and low power consumption.
- Integrated Reference: Internal voltage reference reduces external parts and simplifies PCB design.
- High Accuracy: 16-bit resolution ensures precise measurement for critical applications.
- Simple I2C Interface: Easy to connect to microcontrollers with minimal wiring.
- Compact Design: Small 12-WFDFN package is ideal for space-constrained portable devices.
Precision Temperature Sensing
The 16-bit resolution and internal reference make it ideal for accurate temperature measurement with thermocouples and RTDs.
Battery Monitoring Systems
Low-speed, high-accuracy conversion is perfect for monitoring battery voltage and current in energy storage systems.
Industrial Transmitters
4-20mA loop-powered transmitters benefit from the low power consumption and I2C interface of this ADC.
Environmental Monitoring
Devices measuring air quality, humidity, and pressure require the precision offered by this 16-bit converter.
Portable Medical Devices
The small package and internal reference reduce external component count, ideal for compact medical devices like glucose meters.
- Q: What is the resolution of the LTC2463IDD#PBF?
- A: It is a 16-bit analog-to-digital converter.
- Q: What is the sampling rate?
- A: It has a sampling rate of 60 SPS (samples per second).
- Q: How many channels does it have?
- A: It features a single input channel.
- Q: What interface does it use?
- A: It communicates via an I2C interface.
- Q: Does it have an internal reference?
- A: Yes, it includes an internal voltage reference.
- Q: What is the package type?
- A: It comes in a 12-WFDFN package with an exposed pad.
