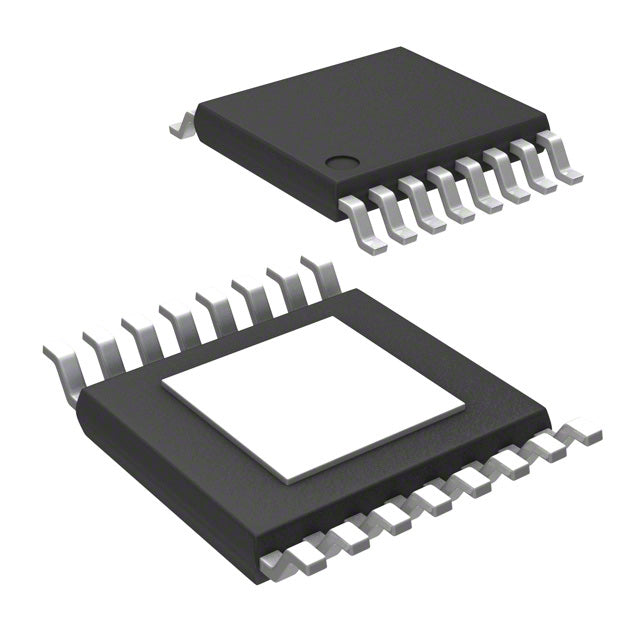

Analog Devices Inc. LTC3412EFE#PBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $9.86 | $9.86 |
| 15+ | $9.55 | $143.25 |
| 25+ | $9.34 | $233.50 |
| 50+ | $8.82 | $441.00 |
| 100+ | $7.79 | $779.00 |
| N+ | $1.56 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tube | |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.625V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 5V |
| Current - Output | 2.5A |
| Frequency - Switching | 300kHz ~ 4MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 16-TSSOP-EP |
| ROHS |  |
The LTC3412EFE#PBF is a versatile step-down DC-DC converter from Analog Devices. It operates from an input voltage between 2.625V and 5.5V, making it ideal for low-voltage systems. It can deliver up to 2.5A of output current with an adjustable output voltage from 0.8V to 5V. The switching frequency is programmable from 300kHz to 4MHz, allowing for a trade-off between efficiency and component size. Packaged in a 16-lead TSSOP with exposed pad, it is suitable for portable, networking, and industrial applications.
- Low Input Voltage Operation: Supports inputs down to 2.625V, ideal for battery and low-voltage rails.
- High Switching Frequency: Up to 4MHz allows for tiny external inductors and capacitors.
- High Efficiency: Optimized for low-voltage conversion, reducing power loss.
- Compact TSSOP Package: Saves board space in space-constrained designs.
Portable Electronics
For battery-powered devices like smartphones and tablets, the LTC3412EFE#PBF's low input voltage range and high efficiency help maximize battery life.
Point-of-Load Converters
It is ideal for POL applications in FPGAs and DSPs, converting a 3.3V or 5V rail down to a lower core voltage with high accuracy.
Distributed Power Systems
In systems with a 5V intermediate bus, this converter can efficiently generate lower voltages for various ICs, simplifying power distribution.
Networking and Communications
It can power low-voltage logic in networking equipment, providing a clean and stable supply for high-speed data processing.
Industrial Sensors and Instruments
With its wide frequency range, it can be used in industrial sensors where low noise and small solution size are critical.
USB-Powered Devices
It can step down the 5V USB supply to power microcontrollers, sensors, and other peripherals efficiently.
- Q: What type of converter is the LTC3412EFE#PBF?
- A: It is a step-down (Buck) DC-DC converter.
- Q: What is the input voltage range?
- A: The input voltage range is from 2.625V to 5.5V.
- Q: What is the maximum output current?
- A: The maximum output current is 2.5A.
- Q: What is the switching frequency range?
- A: The switching frequency is adjustable from 300kHz to 4MHz.
- Q: What package is available?
- A: It comes in a 16-TSSOP package with an exposed pad.
- Q: What is the output voltage range?
- A: The output voltage can be set from 0.8V up to 5V.
