Analog Devices Inc. LTC3607EUD#PBF

Zu Produktinformationen springen
1 von 1

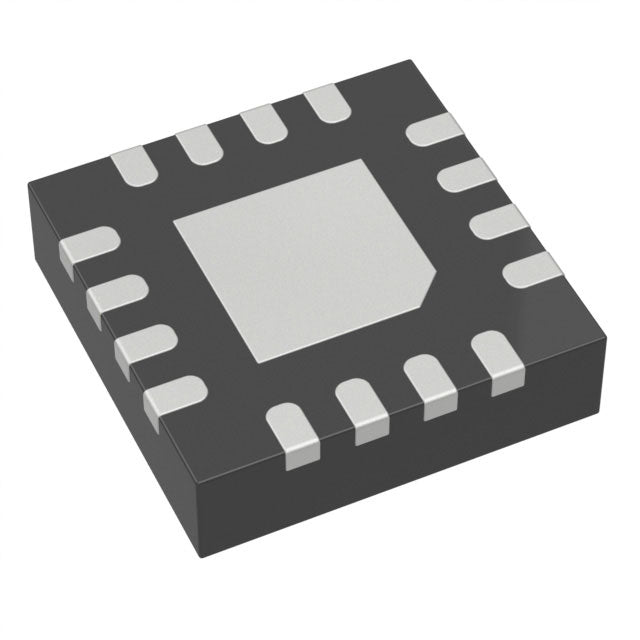

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Normaler Preis $6.29
Normaler Preis $6.62 Verkaufspreis $6.29
Sale Ausverkauft
Quantity Unit Price Total Price
1 $6.29 $6.29
15+ $6.09 $91.35
25+ $5.96 $149.00
50+ $5.63 $281.50
100+ $4.97 $497.00
N+ $0.99 Price Inquiry
Versand wird beim Checkout berechnet
Anzahl
Component Recycling

Request Quote / Inquiry

Product attributes Property Value
Manufacturer Analog Devices Inc.
Product Series
Packaging Tube |
Function Step-Down
Output Configuration Positive
Topology Buck
Output Type Adjustable
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 15V
Voltage - Output (Min/Fixed) 0.6V
Voltage - Output (Max) 15V
Current - Output 600mA
Frequency - Switching 2.25MHz
Synchronous Rectifier Yes
Operating Temperature -40°C ~ 125°C (TJ)
Grade -
Qualification -
Mounting Type Surface Mount
Package / Case 16-WFQFN Exposed Pad
Supplier Device Package 16-QFN (3x3)
ROHS RoHS Compliant - Hazardous Substance Free Electronic Components | HQICKEY

The LTC3607EUD is a dual-channel synchronous step-down DC-DC converter from Analog Devices. It operates from a 4.5V to 15V input and provides adjustable outputs from 0.6V to 15V, with each channel delivering up to 600mA. The fixed 2.25MHz switching frequency allows for small inductors and capacitors, making it ideal for space-constrained applications in computing, networking, and industrial systems.

  • Dual Outputs: Two independent 600mA channels reduce component count in multi-rail designs.
  • High Efficiency: Synchronous rectification improves efficiency, especially at lower output voltages.
  • Small Solution Size: 2.25MHz frequency and 16-WFQFN package enable compact layouts.
  • Wide Input Range: 4.5V to 15V covers 5V, 9V, and 12V common rails.

Distributed Power Systems

Step down 12V or 5V buses to lower core voltages (e.g., 1.8V, 3.3V) for FPGAs, DSPs, and microcontrollers in networking equipment.

Portable Instruments

Efficiently convert a 9V or 12V battery to 3.3V or 5V for handheld test equipment, extending battery life.

Automotive Infotainment

Generate clean, regulated rails from a 12V car battery for audio codecs, displays, and sensors, with 2.25MHz operation reducing EMI.

Industrial Control Boards

Provide dual 600mA outputs for logic, analog, and interface circuits in PLCs and motor controllers from a 24V or 15V supply.

Point-of-Load (POL) Converters

Use the LTC3607EUD as a compact POL solution for high-density boards, minimizing external components with integrated FETs.

Q: What type of converter is the LTC3607EUD?
A: It is a synchronous step-down (Buck) DC-DC converter.
Q: What is the input voltage range?
A: The input voltage range is 4.5V to 15V.
Q: What is the output voltage range?
A: The output is adjustable from 0.6V up to 15V.
Q: What is the maximum output current?
A: It can deliver up to 600mA per channel (dual output).
Q: What is the switching frequency?
A: The switching frequency is fixed at 2.25MHz.
Q: What package is available?
A: It comes in a 16-WFQFN exposed pad package.
Base Product Number : LTC3607EUD
16-WFQFN 2.25MHz 4.5V-15V 600mA Analog Devices Buck DC-DC Converter Dual Output Networking Point-of-Load Step-Down
