Analog Devices Inc. LTC4009CUF-1#TRPBF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 16.30 | Dhs. 16.30 |
| 15+ | Dhs. 15.79 | Dhs. 236.85 |
| 25+ | Dhs. 15.44 | Dhs. 386.00 |
| 50+ | Dhs. 14.59 | Dhs. 729.50 |
| 100+ | Dhs. 12.87 | Dhs. 1,287.00 |
| N+ | Dhs. 2.57 | Price Inquiry |
Request Quote / Inquiry
Product Overview
The LTC4009CUF-1#TRPBF is a high-performance multi-chemistry battery charger IC from Analog Devices Inc. designed for versatile charging applications supporting 1 to 4 cells. This advanced battery management solution features programmable constant current charging, over-voltage and reverse current protection, making it ideal for embedded systems, industrial equipment, and portable device applications.
Key Features
- Multi-Chemistry Support: Compatible with various battery chemistries for flexible design integration
- Wide Input Range: Operates with supply voltages up to 28V
- Programmable Charging: Constant current charging with customizable parameters
- Advanced Protection: Built-in over-voltage and reverse current fault protection

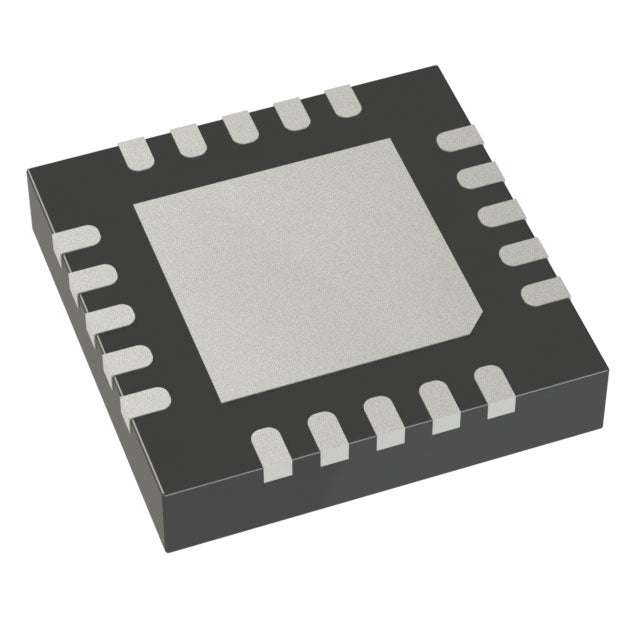

- Compact Package: 20-QFN (4x4mm) surface mount package for space-constrained designs
- Industrial Temperature Range: Reliable operation from 0°C to 85°C
Applications
This battery charger IC is perfectly suited for:
- Portable medical devices and diagnostic equipment
- Industrial handheld instruments and test equipment
- Battery-powered IoT and embedded systems
- Multi-cell battery pack management systems
- Ruggedized field equipment requiring reliable charging
Why Choose HQICKEY?
At HQICKEY, we specialize in providing authentic, high-quality semiconductors for embedded and industrial applications. Every component is sourced directly from authorized distributors, ensuring genuine parts with full manufacturer support and traceability. Our technical team understands the critical nature of power management ICs in your designs and provides expert guidance for component selection and lifecycle planning.
Related Products & Resources
Explore our complete range of Battery Chargers for additional power management solutions. Visit our homepage to discover our full catalog of premium semiconductors, or check our technical blog for application notes, design tips, and industry insights.
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Battery Chemistry | Multi-Chemistry |
| Number of Cells | 1 ~ 4 |
| Current - Charging | Constant - Programmable |
| Programmable Features | - |
| Fault Protection | Over Voltage, Reverse Current |
| Charge Current - Max | - |
| Battery Pack Voltage | 16.4V |
| Voltage - Supply (Max) | 28V |
| Interface | - |
| Operating Temperature | 0°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-WFQFN Exposed Pad |
| Supplier Device Package | 20-QFN (4x4) |
| ROHS |  |
LTC4009CUF-1#TRPBF.pdf
