Microchip Technology M2S005S-1VF256
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 90.36 | Dhs. 90.36 |
| 15+ | Dhs. 87.50 | Dhs. 1,312.50 |
| 25+ | Dhs. 85.60 | Dhs. 2,140.00 |
| 50+ | Dhs. 80.84 | Dhs. 4,042.00 |
| 100+ | Dhs. 71.33 | Dhs. 7,133.00 |
| N+ | Dhs. 14.27 | Price Inquiry |
Request Quote / Inquiry
M2S005S-1VF256 SmartFusion2 SoC FPGA Overview
The M2S005S-1VF256 from Microchip Technology is a high-performance System-on-Chip (SoC) FPGA from the SmartFusion®2 family, combining an ARM® Cortex®-M3 microcontroller core with programmable FPGA fabric. This device delivers 166MHz processing speed with 5K logic modules, making it ideal for industrial automation, automotive systems, aerospace applications, and secure communications infrastructure.
Key Features
- Dual Architecture: ARM Cortex-M3 MCU + FPGA fabric for flexible system design
- Memory: 128KB Flash and 64KB RAM for application code and data storage
- Connectivity: CANbus, Ethernet, I2C, SPI, UART/USART, and USB interfaces
- Operating Range: 0°C to 85°C (TJ) for industrial-grade reliability

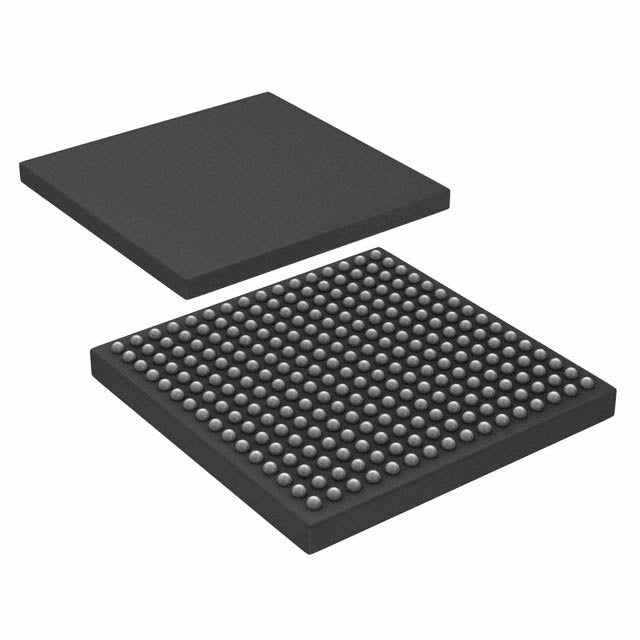

- Package: 256-LFBGA (14x14mm) for compact PCB integration
- Status: Active production with long-term availability
Applications
This SmartFusion2 device is engineered for applications requiring both processing power and programmable logic, including motor control systems, industrial IoT edge devices, secure data acquisition, protocol bridging, and embedded vision systems. The integrated security features and diverse connectivity options make it suitable for mission-critical deployments.
Documentation & Support: Full datasheets, reference designs, and development tools are available from Microchip Technology. RoHS compliant and backed by authorized distribution.
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | SmartFusion®2 |
| Packaging | Tray | |
| Part Status | Active |
| Architecture | MCU, FPGA |
| Core Processor | ARM® Cortex®-M3 |
| Flash Size | 128KB |
| RAM Size | 64KB |
| Peripherals | - |
| Connectivity | CANbus, Ethernet, I2C, SPI, UART/USART, USB |
| Speed | 166MHz |
| Primary Attributes | FPGA - 5K Logic Modules |
| Operating Temperature | 0°C ~ 85°C (TJ) |
| Grade | - |
| Qualification | - |
| Package / Case | 256-LFBGA |
| Supplier Device Package | 256-FPBGA (14x14) |
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
