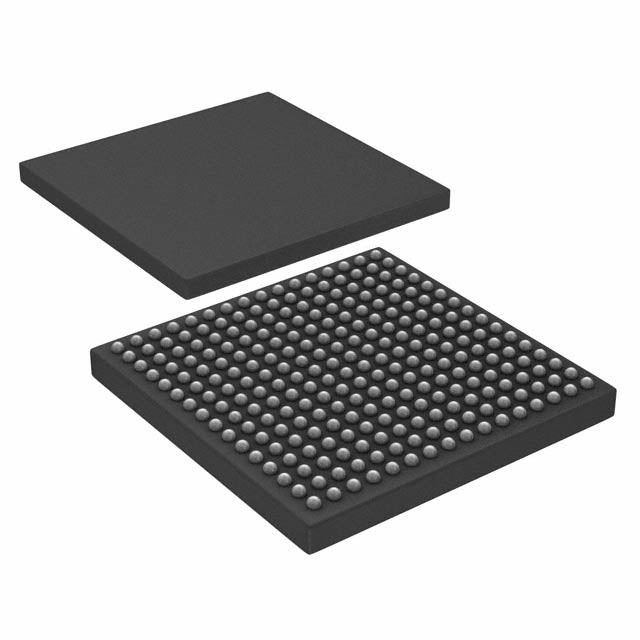

Microchip Technology M2S005S-VF256I
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 90.36 | Dhs. 90.36 |
| 15+ | Dhs. 87.51 | Dhs. 1,312.65 |
| 25+ | Dhs. 85.61 | Dhs. 2,140.25 |
| 50+ | Dhs. 80.85 | Dhs. 4,042.50 |
| 100+ | Dhs. 71.34 | Dhs. 7,134.00 |
| N+ | Dhs. 14.27 | Price Inquiry |
Request Quote / Inquiry
M2S005S-VF256I SmartFusion2 SoC FPGA Overview
The M2S005S-VF256I from Microchip Technology is a high-performance System-on-Chip (SoC) FPGA from the SmartFusion®2 family, combining an ARM® Cortex®-M3 microcontroller core with FPGA fabric. This industrial-grade device delivers 166MHz processing speed with 5K logic modules, making it ideal for embedded applications requiring both programmable logic and microcontroller functionality.
Key Features & Benefits
- Dual Architecture: ARM Cortex-M3 MCU integrated with FPGA fabric for maximum flexibility
- Rich Connectivity: CANbus, Ethernet, I2C, SPI, UART/USART, and USB interfaces
- Robust Memory: 128KB Flash and 64KB RAM for application code and data storage
- Industrial Temperature Range: Operates reliably from -40°C to 100°C (TJ)
- Compact Package: 256-FPBGA (14x14mm) for space-constrained designs
- Active Production Status: Fully supported with long lifecycle availability
Ideal Applications
Perfect for industrial automation, motor control, communications infrastructure, medical devices, and aerospace systems requiring deterministic real-time processing combined with programmable logic capabilities.
Why Choose M2S005S-VF256I?
This SmartFusion2 device offers the unique advantage of combining deterministic, real-time ARM processing with customizable FPGA logic in a single chip, reducing BOM costs, board space, and power consumption while improving system reliability. Full RoHS/REACH compliance and comprehensive design support resources including datasheets and reference designs ensure rapid time-to-market.
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | SmartFusion®2 |
| Packaging | Tray | |
| Part Status | Active |
| Architecture | MCU, FPGA |
| Core Processor | ARM® Cortex®-M3 |
| Flash Size | 128KB |
| RAM Size | 64KB |
| Peripherals | - |
| Connectivity | CANbus, Ethernet, I2C, SPI, UART/USART, USB |
| Speed | 166MHz |
| Primary Attributes | FPGA - 5K Logic Modules |
| Operating Temperature | -40°C ~ 100°C (TJ) |
| Grade | - |
| Qualification | - |
| Package / Case | 256-LFBGA |
| Supplier Device Package | 256-FPBGA (14x14) |
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
