Microchip Technology M2S010S-TQG144I

Microchip M2S010S-TQG144I SmartFusion2 SoC FPGA

The M2S010S-TQG144I is a high-performance System-on-Chip (SoC) FPGA from Microchip's SmartFusion®2 family, combining an ARM® Cortex®-M3 microcontroller with 10,000 logic modules of FPGA fabric. This powerful hybrid architecture delivers the flexibility of programmable logic with the deterministic performance of a hard processor core.

Key Features & Benefits

• Dual Architecture: ARM Cortex-M3 processor running at 166MHz paired with 10K logic module FPGA fabric
• Rich Connectivity: Integrated CANbus, Ethernet, I2C, SPI, UART/USART, and USB interfaces
• Ample Memory: 256KB Flash and 64KB RAM for application code and data storage
• Industrial Temperature Range: Operates reliably from -40°C to 100°C (TJ) for harsh environments

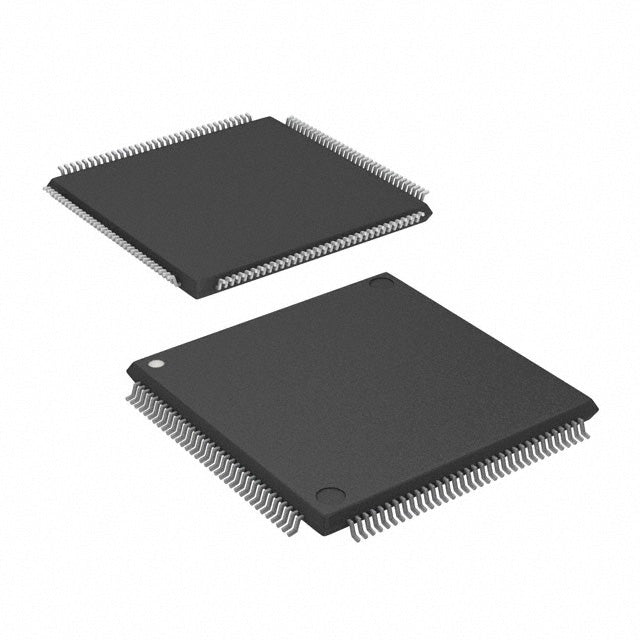

• Compact Package: 144-pin TQFP (20x20mm) for space-constrained designs

Ideal Applications

Perfect for industrial control systems, motor control, embedded vision, communications infrastructure, and IoT edge devices requiring both processing power and hardware acceleration. The SmartFusion2 architecture enables secure, low-power designs with deterministic real-time performance.

Why Choose Genuine Microchip Components?

We supply only authentic Microchip Technology components with full traceability. Every M2S010S-TQG144I ships with manufacturer warranty coverage and meets all original specifications for reliability and performance.

• M2S010S-TQG144I.pdf
