Microchip Technology M2S090-1FGG676

Microchip M2S090-1FGG676 SmartFusion®2 SoC FPGA

The M2S090-1FGG676 is a high-performance System-on-Chip (SoC) from Microchip Technology's SmartFusion®2 family, integrating an ARM® Cortex®-M3 microcontroller with a 90,000 logic module FPGA fabric. This powerful combination delivers exceptional flexibility for embedded applications requiring both processing power and programmable logic.

Key Features

• Dual Architecture: ARM Cortex-M3 MCU core running at 166MHz paired with 90K logic module FPGA
• Memory: 512KB embedded Flash and 64KB SRAM for program and data storage
• High-Speed Interfaces: DDR controller, PCIe, and SERDES for demanding connectivity requirements
• Rich Connectivity: CANbus, Ethernet, I²C, SPI, UART/USART, and USB peripherals
• Industrial Grade: Operating temperature range 0°C to 85°C (TJ)

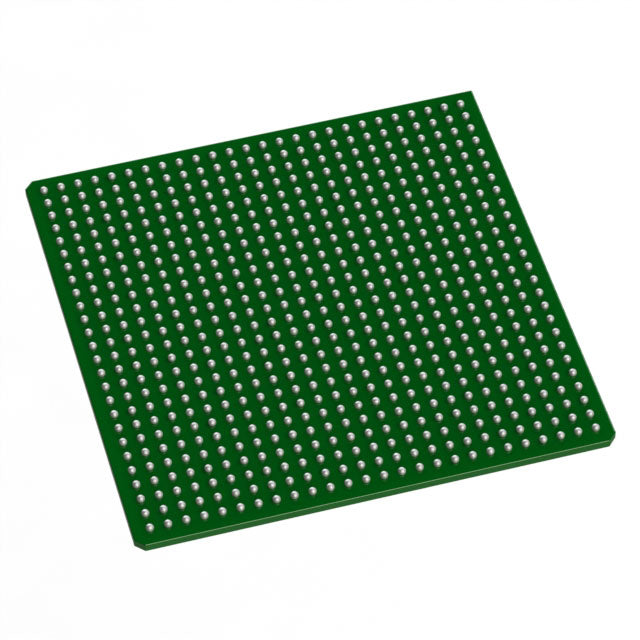

• Compact Package: 676-pin FBGA (27mm × 27mm) for space-constrained designs
• RoHS Compliant: Meets environmental standards for global deployment

Applications

Ideal for industrial automation, motor control, communications infrastructure, automotive systems, and aerospace applications requiring secure, reliable processing with FPGA flexibility.

• M2S090-1FGG676.pdf
