Microchip Technology M2S150TS-FC1152

Microchip M2S150TS-FC1152 SmartFusion2 SoC FPGA

The M2S150TS-FC1152 is a high-performance System-on-Chip (SoC) FPGA from Microchip's SmartFusion®2 family, combining an ARM® Cortex®-M3 processor with 150K logic modules of programmable FPGA fabric. This powerful device delivers exceptional flexibility for embedded applications requiring both processing power and programmable logic.

Key Features:

• Dual Architecture: ARM Cortex-M3 MCU + 150K Logic Module FPGA
• High-Speed Processing: 166MHz core frequency
• Generous Memory: 512KB Flash + 64KB RAM
• Advanced Connectivity: CANbus, Ethernet, I2C, SPI, UART/USART, USB
• High-Speed Interfaces: DDR, PCIe, SERDES peripherals
• Industrial Temperature Range: 0°C to 85°C (TJ)

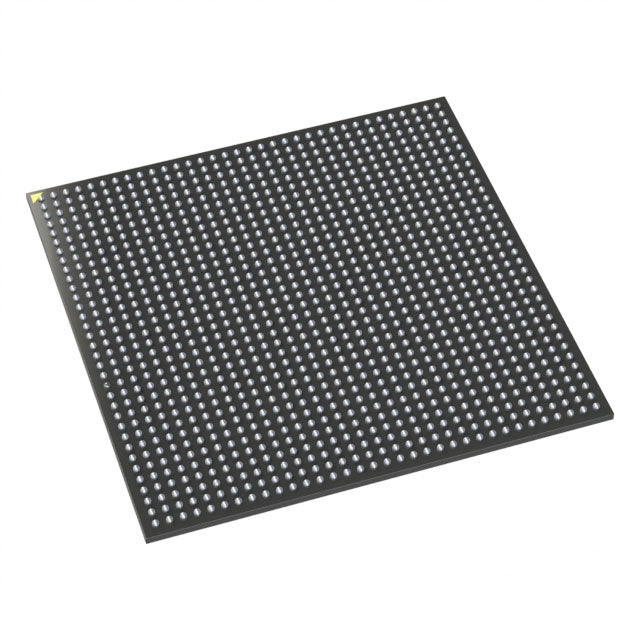

• Compact Package: 1152-FCBGA (35x35mm)

Applications:

Ideal for industrial automation, motor control, communications infrastructure, medical devices, aerospace systems, and any application requiring secure, reliable programmable logic with embedded processing.

Technical Specifications:

Authenticity Guaranteed: All components are sourced from authorized distributors and verified for authenticity. We provide genuine Microchip parts with full traceability and compliance documentation.

• M2S150TS-FC1152.pdf
