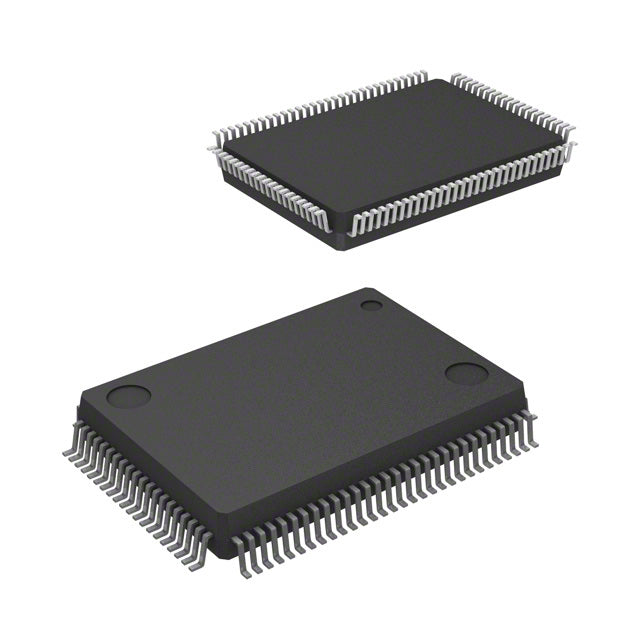

Renesas Electronics Corporation M30843FHFP#U5
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Renesas Electronics Corporation |
| Product Series | M16C™ M32C/80/84 |
| Packaging | | Tray |
| Core Processor | M32C/80 |
| Core Size | 16/32-Bit |
| Speed | 32MHz |
| Connectivity | CANbus, I2C, IEBus, SIO, UART/USART |
| Peripherals | DMA, PWM, WDT |
| Number of I/O | 85 |
| Program Memory Size | 384KB (384K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| RAM Size | 24K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Data Converters | A/D 26x10b; D/A 2x8b |
| Oscillator Type | Internal |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-QFP (14x20) |
| Package / Case | 100-BQFP |
| ROHS |  |
The Renesas M30843FHFP#U5 is a 32-bit microcontroller built on the M32C/80 core, operating at 32MHz. It provides 384KB of program memory and 24K x 8 of RAM, with integrated DMA, PWM, and WDT peripherals. Housed in a 100-BQFP package, it operates from 3V to 5.5V and -20°C to 85°C, making it a powerful choice for complex embedded systems.
- Rich Peripheral Set: Integrated PWM, DMA, and WDT reduce external component count and simplify design.
- Large Program Storage: 384KB flash accommodates complex firmware and future updates.
- High Computational Throughput: 32MHz core speed ensures fast response in time-critical applications.
- Ample RAM: 24K x 8 supports large data buffers and complex state machines.
Advanced Motor Drives
The 32MHz M32C/80 core combined with PWM and 384KB flash enables sophisticated motor control algorithms for servo drives and variable frequency drives.
Industrial Robotics
With 24K RAM and DMA, this MCU can handle multi-axis coordination and real-time trajectory planning in robotic systems.
Power Conversion Systems
The PWM module is ideal for controlling inverters and converters in solar or wind power systems, maximizing energy harvest.
Medical Imaging Equipment
High-speed processing and large memory support image processing tasks in ultrasound or X-ray machines, improving diagnostic capabilities.
Automotive Electronic Power Steering
The combination of PWM and fast core provides precise torque control in EPS systems, enhancing vehicle safety and comfort.
High-End Vending Machines
Ample memory and peripherals support complex user interfaces and inventory tracking in modern vending equipment.
- Q: What is the program memory size of the M30843FHFP#U5?
- A: It has 384KB of flash memory.
- Q: Does it include a PWM module?
- A: Yes, it features PWM, DMA, and WDT.
- Q: What is the operating temperature range?
- A: It operates from -20°C to 85°C.
- Q: What is the core speed?
- A: The core runs at 32MHz.
- Q: How much RAM is available?
- A: It includes 24K x 8 of RAM.
