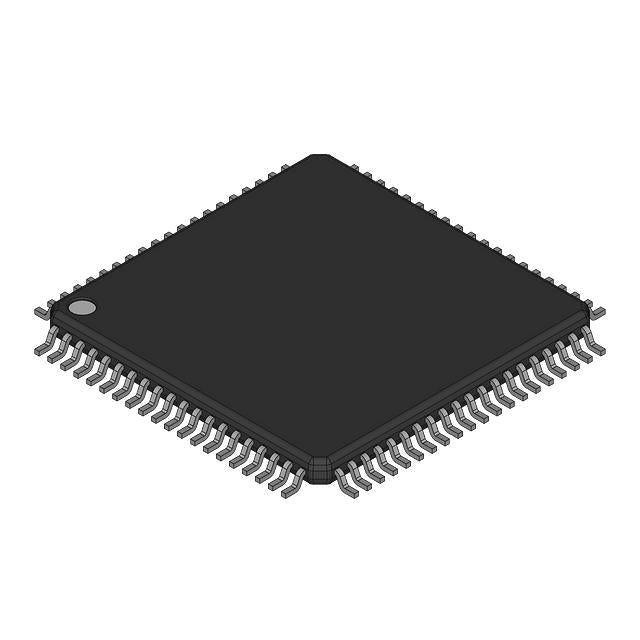

Renesas Electronics Corporation M37911FGCHP
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $145.12 | $145.12 |
| 15+ | $33.38 | $500.70 |
| 25+ | $32.65 | $816.25 |
| 50+ | $30.84 | $1,542.00 |
| 100+ | $27.21 | $2,721.00 |
| N+ | $5.44 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Renesas Electronics Corporation |
| Product Series | |
| Packaging | Bulk | Bulk |
| Core Processor | 7700 |
| Core Size | 16-Bit |
| Speed | 40MHz |
| Connectivity | UART/USART |
| Peripherals | WDT |
| Number of I/O | 11 |
| Program Memory Size | 120KB (120K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 3.875K x 8 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Data Converters | A/D 8x10b; D/A 2x8b |
| Oscillator Type | External |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 80-LQFP (12x12) |
| Package / Case | 80-LQFP |
The Renesas M37911FGCHP is a high-performance 16-bit microcontroller built on the 7700 core. It operates at up to 40MHz with 120KB of program memory and 3.875K x 8 RAM. Housed in an 80-LQFP package, it supports a 4.5V to 5.5V supply range and includes a watchdog timer for reliable operation in industrial and automotive environments.
- High-Speed Processing: 40MHz clock enables rapid execution of complex algorithms.
- Ample Memory: 120KB flash and 3.875K RAM support large firmware and data buffers.
- Reliable Operation: Integrated WDT prevents system lockups in critical applications.
- Wide Temperature Range: -20°C to 85°C suits industrial environments.
Industrial Control Systems
The 40MHz 7700 core with 120KB flash provides fast, deterministic response for PLCs and motor control loops.
Automotive Body Electronics
With a 4.5-5.5V supply and WDT, it handles window lift and mirror control modules reliably in harsh environments.
Medical Monitoring Devices
Its 3.875K RAM supports real-time data buffering for patient vitals, while the -20°C to 85°C range covers clinical settings.
Smart Metering Infrastructure
The low-power design and 5V tolerance make it ideal for utility meters requiring long-term field operation.
Robotics Controllers
High-speed 40MHz processing enables precise servo control loops with minimal latency.
Building Automation
HVAC controllers benefit from the 80-LQFP package and robust WDT for 24/7 operation.
- Q: What is the operating voltage range of the M37911FGCHP?
- A: The M37911FGCHP operates from 4.5V to 5.5V, making it suitable for standard 5V systems.
- Q: What is the maximum clock speed?
- A: It supports a maximum clock speed of 40MHz, enabling high-speed processing.
- Q: What package is available?
- A: It comes in an 80-LQFP package, ideal for space-constrained PCB designs.
- Q: Does it include a watchdog timer?
- A: Yes, it features a built-in Watchdog Timer (WDT) for enhanced system reliability.
