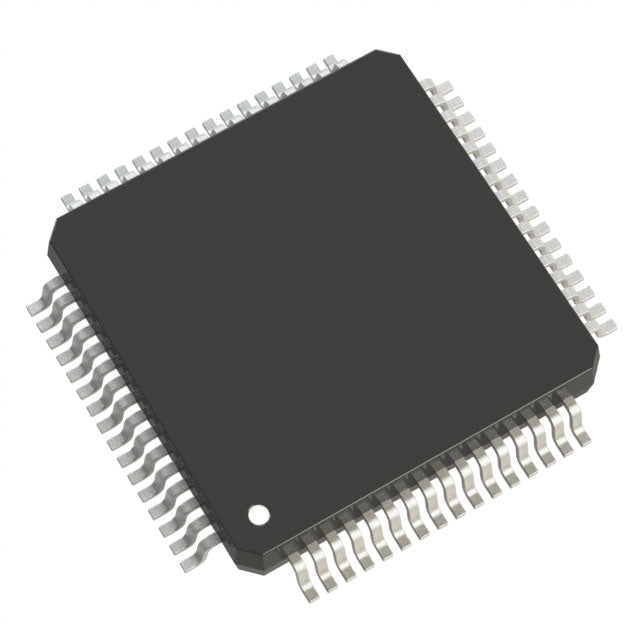

Nuvoton Technology Corporation M481SE8AE
Normaler Preis
$12.43
Normaler Preis
$3.11
Verkaufspreis
$12.43
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $12.43 | $12.43 |
| 15+ | $2.86 | $42.90 |
| 25+ | $2.80 | $70.00 |
| 50+ | $2.64 | $132.00 |
| 100+ | $2.33 | $233.00 |
| N+ | $0.47 | Price Inquiry |
Versand wird beim Checkout berechnet
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Nuvoton Technology Corporation |
| Product Series | NuMicro® M480 |
| Packaging | Tray | NULL |
| Core Processor | ARM® Cortex®-M4F |
| Core Size | 32-Bit Single-Core |
| Speed | 192MHz |
| Connectivity | I2C, LINbus, SCI, SmartCard, SPI |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, LVR, POR, PWM, WDT |
| Number of I/O | 52 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 64K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 16x12b SAR; D/A 1x12b |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-LQFP (7x7) |
| Package / Case | 64-LQFP |
| ROHS |  |
The Nuvoton M481SE8AE is a 32-bit ARM Cortex-M4F microcontroller with DSP and FPU, running at 192MHz. It includes 128KB flash, 64KB SRAM, an LCD controller, I2S, and DMA. Operating from 1.8V to 3.6V, it targets high-performance embedded applications requiring signal processing and graphical displays.
- 192MHz Cortex-M4F with FPU: Handles complex math and DSP tasks efficiently.
- Integrated LCD controller: Drives displays directly, saving external driver ICs.
- 64KB SRAM: Large buffer for audio/video or high-speed data acquisition.
- 1.8V low-voltage operation: Ideal for battery-powered portable devices.
Smart Meters
LCD controller and 192MHz Cortex-M4F handle complex metrology algorithms and display updates.
Industrial HMI Panels
DMA + LCD drive graphical interfaces with smooth refresh rates.
Motor Control with FOC
FPU accelerates field-oriented control for servo drives at high PWM frequencies.
Portable Medical Devices
1.8V operation extends battery life in glucose meters and pulse oximeters.
Audio Effects Processors
I2S + DSP instructions enable real-time filtering and reverb effects.
IoT Edge Gateways
64KB RAM buffers sensor data; 128KB flash runs MQTT/TLS stacks.
- Q: What core does it use?
- A: ARM Cortex-M4F with DSP and FPU, up to 192MHz.
- Q: Does it support LCD?
- A: Yes, integrated LCD controller for direct glass panel driving.
- Q: What is the RAM size?
- A: 64KB SRAM, sufficient for real-time DSP buffers.
- Q: What is the supply voltage?
- A: 1.8V to 3.6V, low-power operation.
Base Product Number ：
M481SE8AE
M481SE8AE.pdf
- Q: What core does it use?
- A: ARM Cortex-M4F with DSP and FPU, up to 192MHz.
- Q: Does it support LCD?
- A: Yes, integrated LCD controller for direct glass panel driving.
- Q: What is the RAM size?
- A: 64KB SRAM, sufficient for real-time DSP buffers.
- Q: What is the supply voltage?
- A: 1.8V to 3.6V, low-power operation.
×
