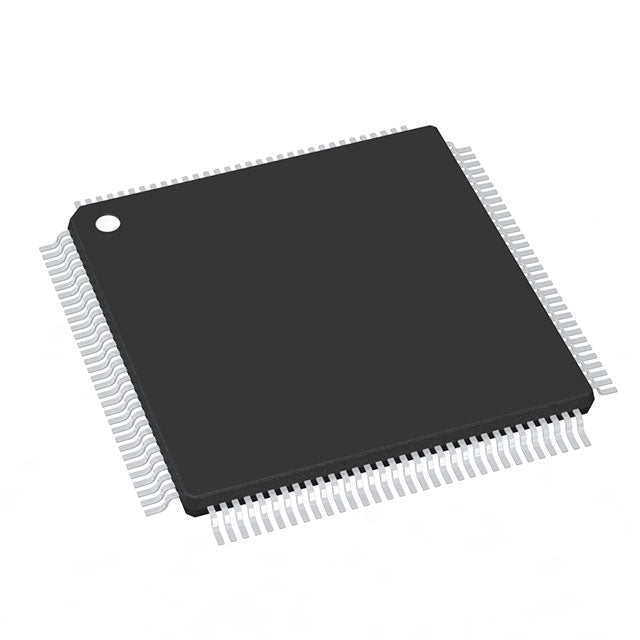

Nuvoton Technology Corporation M487KIDAE
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $10.10 | $10.10 |
| 15+ | $9.78 | $146.70 |
| 25+ | $9.57 | $239.25 |
| 50+ | $9.04 | $452.00 |
| 100+ | $7.97 | $797.00 |
| N+ | $1.59 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Nuvoton Technology Corporation |
| Product Series | NuMicro® M480 |
| Packaging | Tray | Tray |
| Core Processor | ARM® Cortex®-M4F |
| Core Size | 32-Bit Single-Core |
| Speed | 192MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, LINbus, SCI, SmartCard, SPI, USB |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, LVR, POR, PWM, WDT |
| Number of I/O | 100 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 160K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 16x12b; D/A 2x12b |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 128-LQFP (14x14) |
| Package / Case | 128-LQFP |
| ROHS |  |
The Nuvoton M487KIDAE is a high-performance microcontroller built around the ARM Cortex-M4F core, running at up to 192 MHz. It offers 512KB of flash memory and 160KB of SRAM, along with a rich set of peripherals including an LCD controller, I2S, DMA, and multiple PWM channels. Designed for industrial temperature ranges and low-voltage operation, this MCU provides a balanced solution for advanced embedded control and user interface applications.
- High-Speed Processing: The 192 MHz Cortex-M4F core delivers fast execution for complex algorithms and real-time control tasks.
- Integrated LCD Controller: Eliminates the need for an external display driver, reducing BOM cost and board space.
- Wide Voltage Range (1.8V-3.6V): Supports both low-power battery designs and standard 3.3V systems.
- Extended Temperature Range: Rated for -40°C to 105°C, ensuring reliability in harsh industrial environments.
Industrial HMI Panels
With an integrated LCD controller and 192 MHz Cortex-M4F core, the M487KIDAE can drive graphical user interfaces while handling complex control algorithms, reducing system component count.
Smart Home Gateways
The 512KB flash and 160KB RAM provide ample space for protocol stacks (e.g., Zigbee, Wi-Fi) and edge processing, while the DMA and PWM peripherals manage multiple I/O tasks efficiently.
Portable Medical Devices
Operating from 1.8V and featuring low-power modes with brown-out detection, this MCU supports battery-powered monitoring equipment that requires reliable operation over extended periods.
Motor Control Systems
The high-speed PWM and DMA channels enable precise generation of control signals for brushless DC motors, while the 105°C rating ensures stability in thermally challenging enclosures.
Data Acquisition Units
Combining the 192MHz processing speed with I2S for audio/sensor data streaming, the M487KIDAE can handle multi-channel real-time sampling and digital filtering without external DSPs.
Building Automation Controllers
Its wide voltage range and robust reset features make it ideal for HVAC controllers that must operate reliably across fluctuating power supplies and harsh temperature conditions.
- Q: What is the maximum operating frequency of the M487KIDAE?
- A: The M487KIDAE operates at up to 192 MHz, enabling high-performance processing for demanding applications.
- Q: What is the supply voltage range?
- A: It supports a supply voltage range of 1.8V to 3.6V, offering flexibility for low-power and standard applications.
- Q: Does the M487KIDAE include an LCD controller?
- A: Yes, it features an integrated LCD controller, making it suitable for display-based embedded systems.
- Q: What is the operating temperature range?
- A: The device is rated for operation from -40°C to 105°C, suitable for industrial environments.
