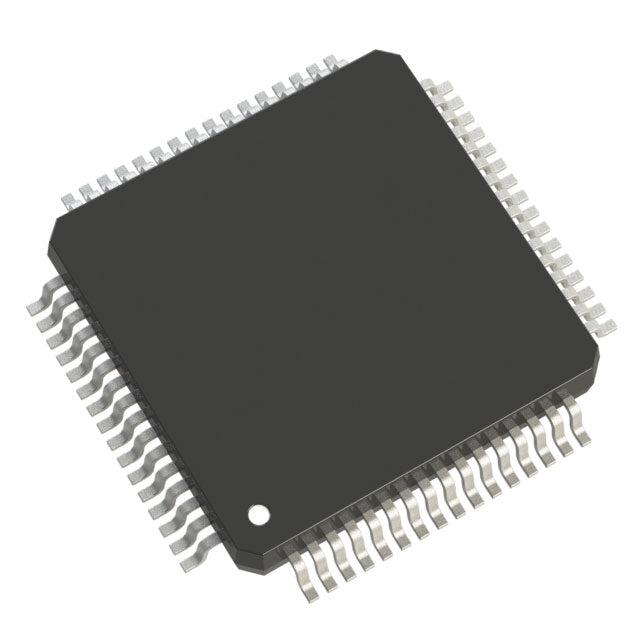

Nuvoton Technology Corporation M487SIDAE
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $9.87 | $9.87 |
| 15+ | $9.56 | $143.40 |
| 25+ | $9.35 | $233.75 |
| 50+ | $8.83 | $441.50 |
| 100+ | $7.79 | $779.00 |
| N+ | $1.56 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Nuvoton Technology Corporation |
| Product Series | NuMicro® M480 |
| Packaging | Tray | Tray |
| Core Processor | ARM® Cortex®-M4F |
| Core Size | 32-Bit Single-Core |
| Speed | 192MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, LINbus, SCI, SmartCard, SPI, USB |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, LVR, POR, PWM, WDT |
| Number of I/O | 44 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 160K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 16x12b; D/A 2x12b |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-LQFP (7x7) |
| Package / Case | 64-LQFP |
| ROHS |  |
The Nuvoton M487SIDAE is a 32-bit ARM Cortex-M4F microcontroller running at 192MHz. It features 512KB flash and 160KB RAM, providing ample resources for complex embedded applications. With an integrated LCD controller, it simplifies display design. Operating from 1.8V to 3.6V and in a 64-LQFP package, it suits industrial and IoT devices requiring high performance and rich peripherals.
- High-Speed Core: 192MHz Cortex-M4F with FPU accelerates math-intensive tasks.
- Integrated LCD: Eliminates external display driver, reducing BOM cost.
- Wide Voltage Range: 1.8V to 3.6V supports both battery and 3.3V rail designs.
- Rich Peripherals: DMA, I2S, PWM, and WDT cover diverse application needs.
Human-Machine Interfaces (HMI)
The integrated LCD controller and 192MHz Cortex-M4F enable rich graphical displays without external GPU.
Industrial IoT Gateways
With 160KB RAM and DMA, it can handle multiple protocol stacks (Ethernet, CAN) for edge connectivity.
Smart Home Controllers
Low-power modes and LVR/POR ensure reliable operation in always-on home automation hubs.
Portable Medical Devices
The 1.8V to 3.6V range supports battery operation, while the M4F core handles signal processing.
Motor Control with Display
PWM + LCD allows integrated drive and status display for industrial pumps.
Data Acquisition Systems
High-speed ADC (via DMA) and 192MHz processing enable real-time waveform analysis.
- Q: What core does the M487SIDAE use?
- A: It uses an ARM Cortex-M4F core with FPU, running at 192MHz.
- Q: What is the RAM size?
- A: It has 160KB of SRAM for data-heavy applications.
- Q: Does it support LCD?
- A: Yes, it includes an LCD controller for direct glass display driving.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 105°C, suitable for industrial environments.
- Q: What package is available?
- A: It comes in a 64-LQFP package, balancing I/O count and board space.
