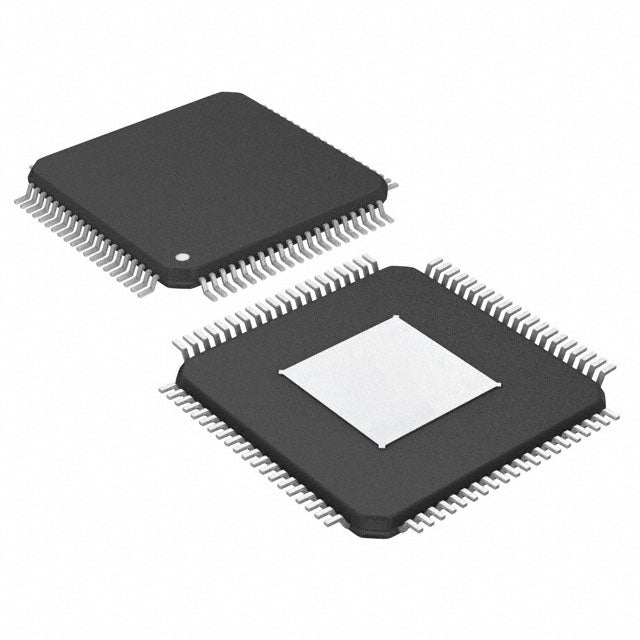

Analog Devices Inc./Maxim Integrated MAX105ECS+
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $67.27 | $67.27 |
| 15+ | $65.15 | $977.25 |
| 25+ | $63.73 | $1,593.25 |
| 50+ | $60.19 | $3,009.50 |
| 100+ | $53.11 | $5,311.00 |
| N+ | $10.62 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Tray | |
| Number of Bits | 6 |
| Sampling Rate (Per Second) | 800M |
| Number of Inputs | 2 |
| Input Type | Differential, Single Ended |
| Data Interface | LVDS - Parallel |
| Configuration | ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 2 |
| Architecture | Flash |
| Reference Type | Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 3V ~ 3.6V |
| Features | Simultaneous Sampling |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 80-TQFP Exposed Pad |
| Supplier Device Package | 80-TQFP-EP (12x12) |
| ROHS |  |
The MAX105ECS+ from Analog Devices is a high-speed, 6-bit Analog-to-Digital Converter (ADC) engineered for demanding signal processing applications. With a dual-channel design and an impressive sampling rate of 800 MSPS, it excels in capturing fast transient signals. The device features an LVDS-Parallel interface for high-speed data transfer and an internal voltage reference for simplified system design. Housed in a compact 80-TQFP package, it is suitable for radar, communications, and high-performance test equipment.
- Ultra-Fast Sampling: 800 MSPS sampling rate enables the digitization of high-frequency signals, ideal for radar and communication systems.
- Dual-Channel Integration: Two ADC channels in one package reduce board space and simplify multi-channel data acquisition designs.
- High-Speed LVDS Interface: LVDS-Parallel output ensures low-noise, high-throughput data transfer to FPGAs or DSPs.
- Internal Reference: The built-in voltage reference minimizes external component count and improves system reliability.
High-Speed Data Acquisition Systems
The MAX105ECS+ with its 800 MSPS sampling rate and 6-bit resolution is ideal for digitizing high-frequency signals in oscilloscopes and transient recorders, ensuring minimal signal distortion.
Radar and Communication Systems
In radar receivers and wideband communication systems, the dual-channel capability and LVDS interface of the MAX105ECS+ enable high-throughput, low-noise digital signal processing.
Medical Imaging Equipment
For ultrasound and other medical imaging devices, the high-speed conversion of the MAX105ECS+ helps capture fast-moving biological signals with high temporal resolution.
Test and Measurement Instruments
The 2-channel architecture and internal reference make the MAX105ECS+ suitable for spectrum analyzers and signal generators, providing accurate and repeatable measurements.
Industrial Non-Destructive Testing
In industrial X-ray or ultrasonic inspection systems, the MAX105ECS+ digitizes sensor arrays quickly, enabling real-time flaw detection and quality control.
- Q: What type of ADC is the MAX105ECS+?
- A: The MAX105ECS+ is a high-speed, 6-bit Analog-to-Digital Converter (ADC) with a proprietary ADC architecture.
- Q: What is the resolution of the MAX105ECS+?
- A: The MAX105ECS+ has a resolution of 6 bits.
- Q: What is the maximum sampling rate of the MAX105ECS+?
- A: The MAX105ECS+ supports a maximum sampling rate of 800 MSPS (mega-samples per second).
- Q: How many channels does the MAX105ECS+ have?
- A: The MAX105ECS+ features 2 input channels.
- Q: What interface does the MAX105ECS+ use?
- A: It uses an LVDS - Parallel interface for data output.
- Q: What is the package type for the MAX105ECS+?
- A: The MAX105ECS+ is available in an 80-TQFP Exposed Pad package.
